Hyundai Genesis (DH): Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and Components Location

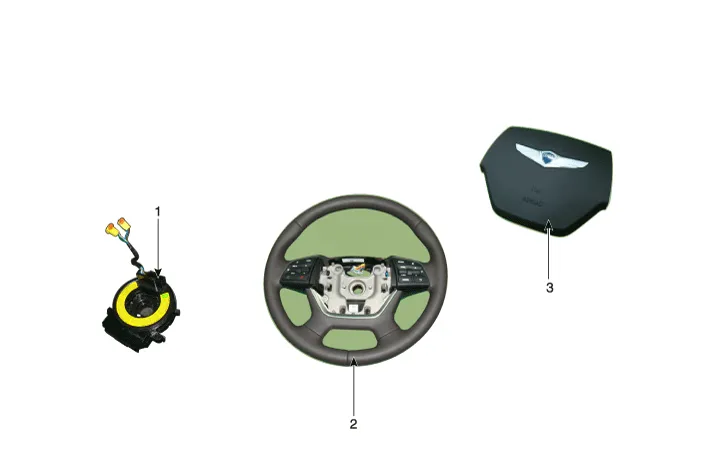

| Components |
| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring |
Description The Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash occurs.
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Put a flat tool(O4mm) into a guide hole located in the bottom of steering wheel and press a spring.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Head Up Display Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the head up display bezel (A). 3. Remove the instrument cluster. (Refer to Indicators And Guages - "Instrument Cluster") 4. Remove the head up display unit bracket (A) after loosening the mounting nuts.
Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
