Hyundai Genesis (DH): Power Windows / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Windows / Components and Components Location

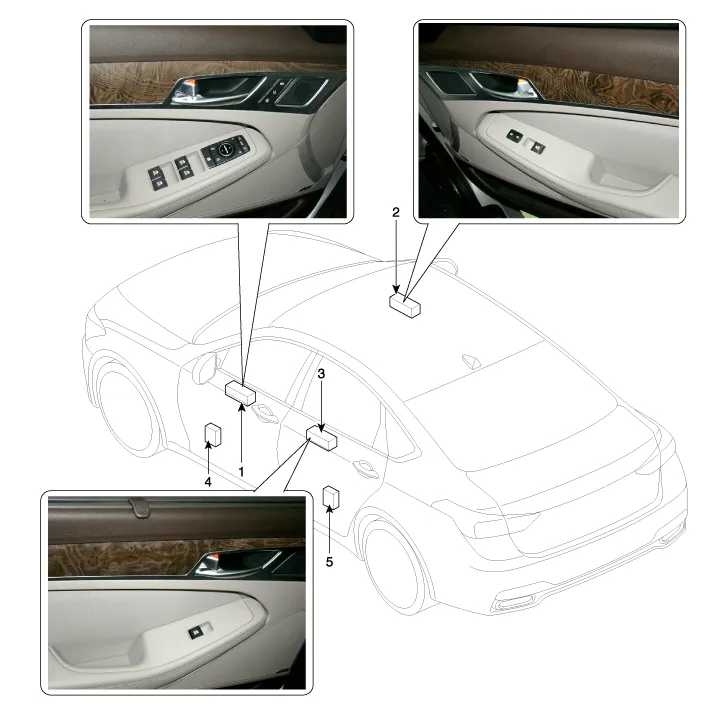

Component Location

1. DDM (Driver door module)
2. ADM (Assistant door module)
3. Front window motor
4. Rear window motor
5. Rear window switch

    Safety Function of Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When the force of 100N (using the 10N/mm spring) is detected while the window is rising, the window is pulled down.
