Hyundai Genesis (DH): Fuel Filler Door / Components and Components Location

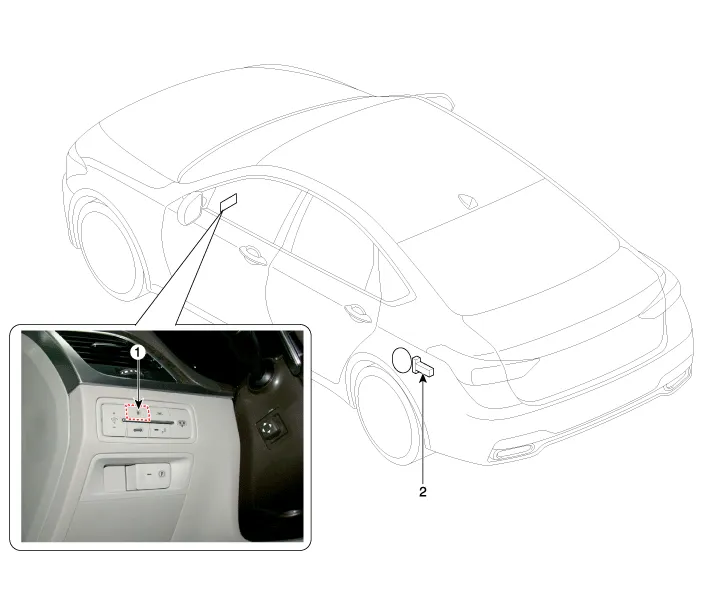

| Component Location |
| 1. Fuel filler door open switch | 2. Fuel filler door release actuator |
Inspection 1. Remove the left luggage side trim. (Refer to Body - "Luggage Side Trim") 2. Remove the subwoofer or rear heater. (Refer to AVN System - "Speakers") 3.
