Hyundai Genesis (DH): Premium AVN System / Components and Components Location

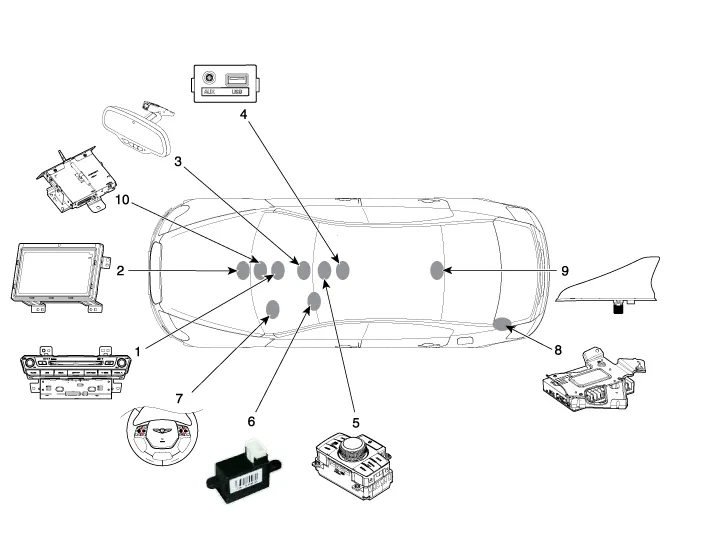

| Component Location |
| 1. AVN head unit 2. Front LCD Monitor 3. Blue Link keypad (blue link) 4. Multimedia jack (front) 5. Rear LCD monitors | 6. Front keyboard 7. Steering wheel remote control (SWRC) 8. External amplifier 9. Roof antenna 10. Blue Link (I-Box) |
Description Premium AVN system The premium AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of the user information such as multimedia, air-conditioning and car information.
