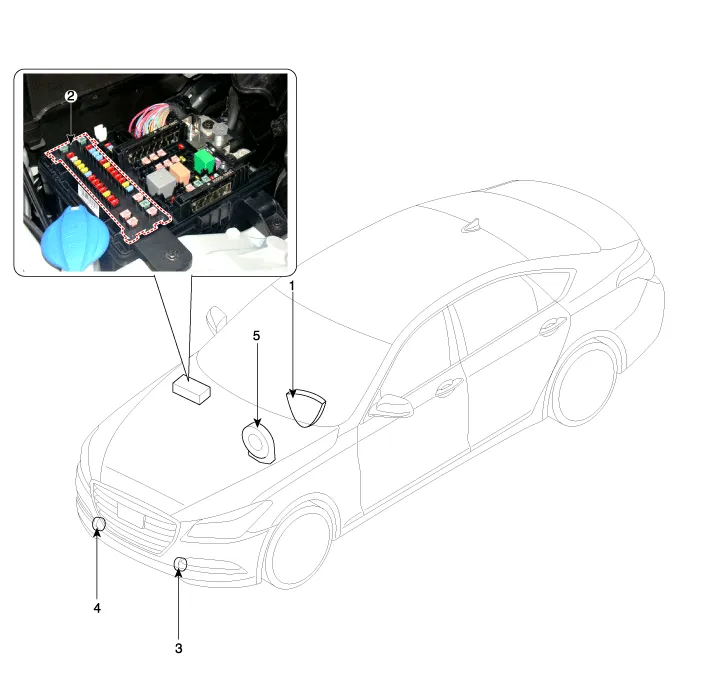

Component Location

1. Horn switch
2. Horn relay (Built - in Metal Core Block PCB)
3. Horn (Low pitch)
4. Horn (High pitch)
5. Clock spring

    Removal 1. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 2. After loosening each mounting bolt of the low-pitch horn (A) and high-pitch horn (B), detach the connector (C) and remove the horn.
