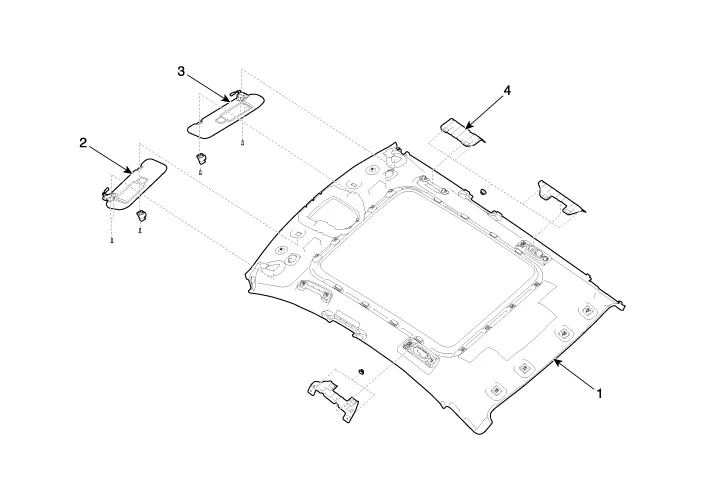

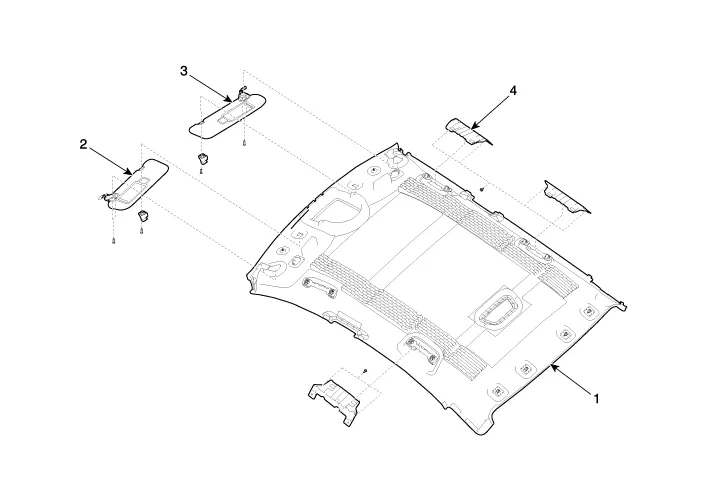

Hyundai Genesis (DH): Roof Trim / Components and Components Location

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: Rear Combination Lamp Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. After loosening the nuts (4EA) holding the rear combination lamp and disconnecting the connector (A), remove the outside rear combination lamp assembly. 3. Remove the bulb (A) after turning it in the counter clock-wise direction.

Hyundai Genesis (DH) 2013-2016 Service Manual: Blind Spot Detection Unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rear Bumper") 3. Remove the BSD unit (A) after loosening the mounting nuts.     Take care not to separate the bracket from rear bumper when removing the BSD sensor.
