Hyundai Genesis (DH): Roof Trim / Sunvisor Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor Components and Components Location

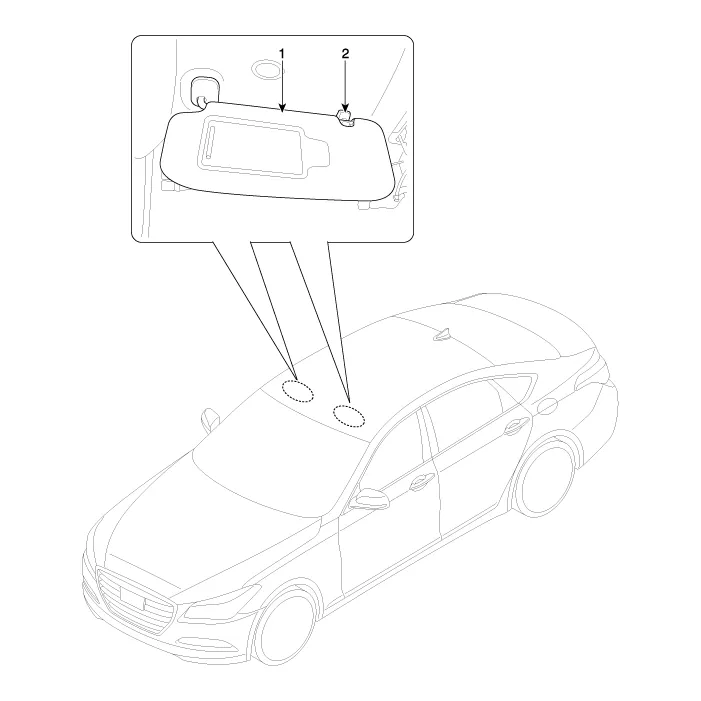

Component Location

1. Sunvisor
2. Retainer

    Components [General Type] 1. Roof trim2. Sunvisor [LH]3. Sunvisor [RH]4. Assist handle bracket [Panorama Sunroof Type] 1. Roof trim2. Sunvisor [LH]3.

    Replacement
