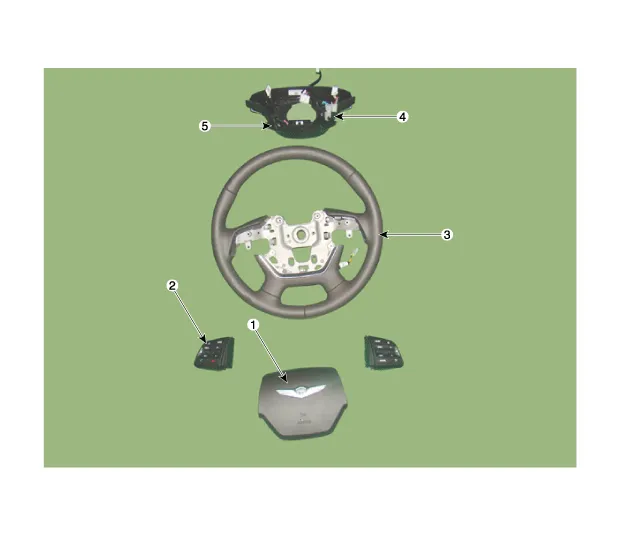

Components

1. Airbag module
2. Remote control switch
3. Steering wheel
4. Wiring
5. Lower cover

    Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
