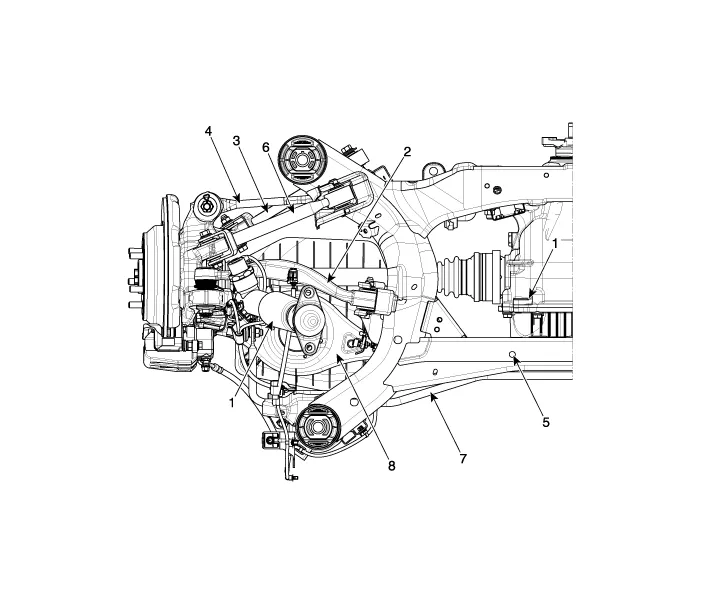

Components Location

1. Rear shock absorber
2. Rear upper arm rear
3. Rear trailing arm
4. Rear assist arm
5. Rear sub frame
6. Rear upper arm front
7. Rear stabilizer bar
8. Rear lower arm

    Components 1. Insulator cap2. Lock nuts3. Insulator assembly4. Dust cover5. Bumper stopper6. Shock absorber
