Hyundai Genesis (DH): Crash Pad / Cluster Fascia Panel Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel Components and Components Location

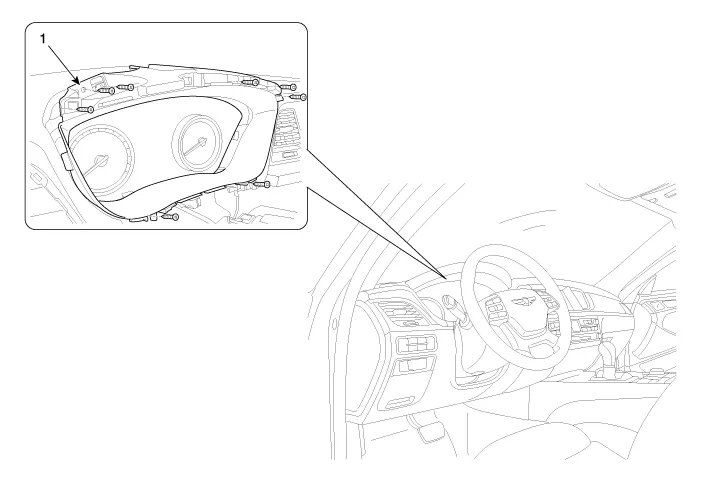

Component Location

1. Cluster fascia panel


    Components (1) 1. Main crash pad assembly2. Crash pad side cover [LH]3. Crash pad side cover [RH]4. Crash pad under cover [LH]5. Crash pad lower panel Components (2) 1.

    Replacement
