Hyundai Genesis (DH): Automatic Transmission Control System / 27 Brake Control Solenoid Valve Schematic Diagrams

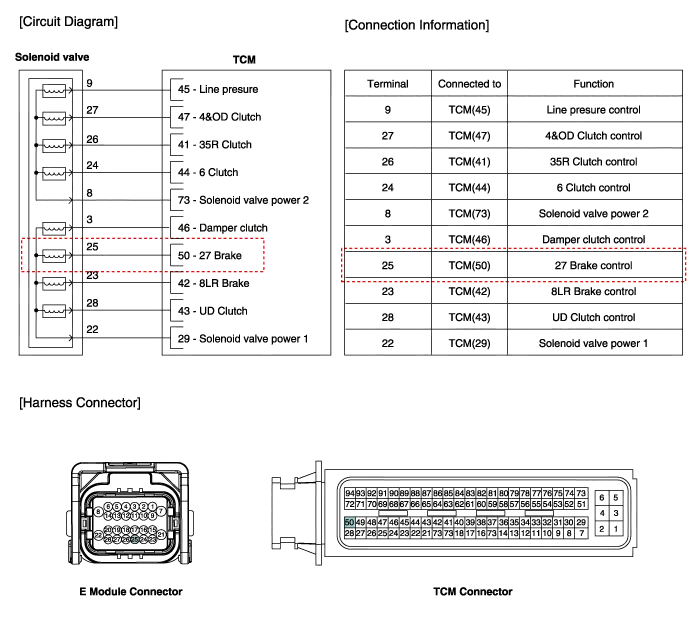

| Circuit Diagram |
Specifications Direct control VFS[27/B] ? Control type : Normal low type Control Pressure kpa (kgf/cm?, psi)0~1569.06 (0~16,0~227.57)Current value(mA)0~1100 Internal resistance(?)5.
Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between solenoid valve terminals. 4.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Description and Operation
Description System Overview The System offers the following features: - Changing the state of engine ignition and power by using the start button. - Controlling external relays for ACC / IGN1 / IGN2 terminal switching and STARTER, without use of mechanical ignition switch.
Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
