Hyundai Genesis: Steering wheel / Heated Steering wheel Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Steering System / Steering wheel / Heated Steering wheel Schematic Diagrams

Circuit Diagram
1.

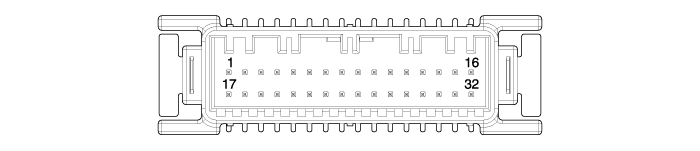

Connector terminal

2.

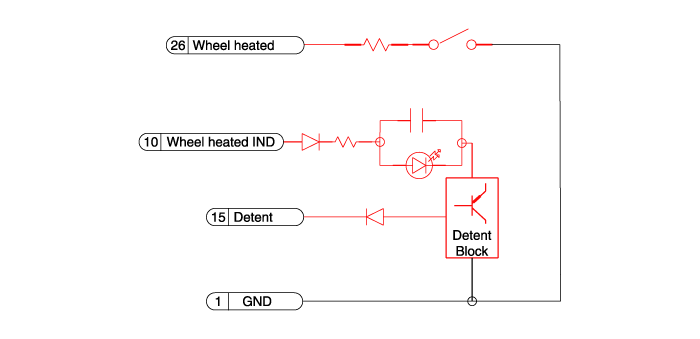

Circuit Diagram

Heated Steering wheel Description and Operation
Description For the convenience of drivers during the winter, exothermic pad is attached to the steering wheel surface to generate heat when it is gripped. 1. Heated control unit 2. Heat ...

Heated Steering wheel Repair procedures
Inspection 1. Measure the resistance between the NTC and heated pad. A. NTC resistance(Black / Yellow, Black) - 10.0 k? ± 10% (25°C) B. Heated pad resistance (Yellow, Black) - 1.0 ~ 1.8 ? ...
