Hyundai Genesis: Steering wheel / Heated Steering wheel Description and Operation

Hyundai Genesis (DH) 2013-2016 Service Manual / Steering System / Steering wheel / Heated Steering wheel Description and Operation

Description

For the convenience of drivers during the winter, exothermic pad is attached to the steering wheel surface to generate heat when it is gripped.

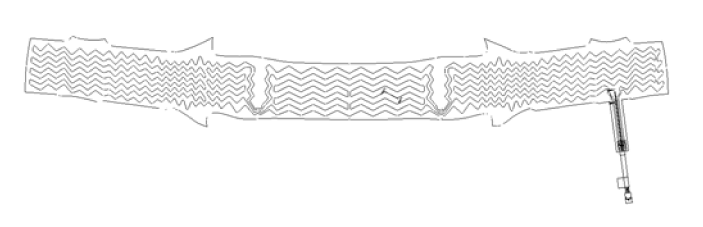

1.	Heated control unit

2.	Heated pad

Operation

The push-return switch transmits signals to the steering wheel heating module. Whenever pressing the switch on, the ON and OFF modes are performed alternately.

The switch input state is checked by using the element memorizing the switch input state; if the power is cut off during operation, the ON switch is memorized; and if the power supply is resumed, the heater is normally operated and the timer begins again from the start.

Heated Steering wheel Components and Components Location

Components 1. Heated steering wheel switch ...

Heated Steering wheel Schematic Diagrams

Circuit Diagram 1. Connector terminal 2. Circuit Diagram ...
