Hyundai Genesis: Light bulbs / Headlamp, position lamp, turn signal lamp, side marker and front fog lamp bulb replacement

Hyundai Genesis (DH) 2013-2016 Owners Manual / Maintenance / Light bulbs / Headlamp, position lamp, turn signal lamp, side marker and front fog lamp bulb replacement

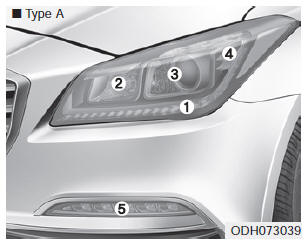

Type A

(1) Turn signal lamp/Position lamp
(2) Headlamp (High)/ Daytime running lights
(3) Headlamp (Low)
(4) Side marker
(5) Fog lamp

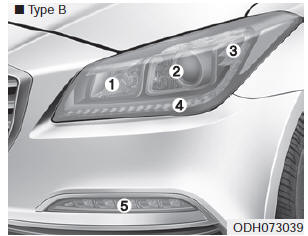

Type B

(1) Turn signal lamp/ Daytime running lights
(2) Headlamp (High/Low)
(3) Side marker
(4) Position lamp
(5) Fog lamp

Headlight (HID type)

WARNING

HID Headlamp low beam

Do not attempt to replace or inspect the low beam (XENON bulb) due to electric shock danger. If the low beam (XENON bulb) is not working, have your vehicle checked by an authorized HYUNDAI Dealer.

CAUTION

If your vehicle is equipped with High Intensity Discharge (HID) headlights, these headlights contain mercury. So if you need to have your vehicle disposed, you should remove the HID Headlights before disposal. The removed HID headlights should be recycled, re-used or disposed as hazardous waste.

If the light bulb does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

✽ NOTICE

HID lamps have superior performance vs. halogen bulbs.

HID lamps are estimated by the manufacturer to last twice as long or longer than halogen bulbs depending on their frequency of use. They will probably require replacement at some point in the life of the vehicle. Cycling the headlamps on and off more than typical use will shorten HID lamps life. HID lamps do not fail in the same manner as halogen incandescent lamps. If a headlamp goes out after a period of operation but will immediately relight when the headlamp switch is cycled it is likely the HID lamp needs to be replaced. HID lighting components are more complex than conventional halogen bulbs thus have higher replacement cost.

✽ NOTICE

We recommend that the headlamp aiming be adjusted after an accident or after the headlamp assembly is reinstalled at an authorized HYUNDAI dealer.

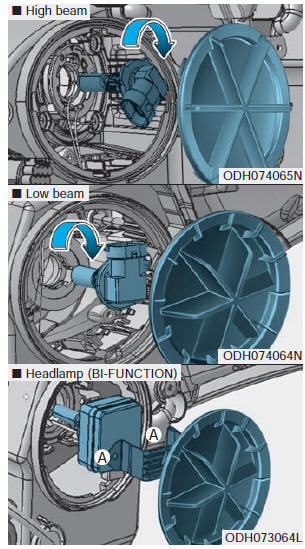

Headlamp

1.Turn off the engine.

2.Open the hood.

3.Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

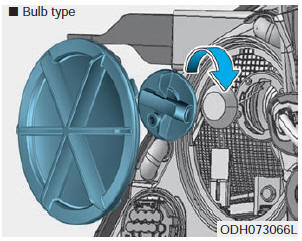

4.Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket. (Bulb type) Remove the connector (A) and pull the BI-FUNCTION lamp. (BIFUNCTION type)

5.Insert a new bulb by inserting it into the socket and rotating it until it locks into place. (Bulb type) Connect the BI-FUNCTION lamp to the cable and install the connector (A). (BI-FUNCTION type)

6.Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

Push the socket into the assembly and turn the socket clockwise.

Turn signal light

1.Turn off the engine.

2.Open the hood.

3.Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4.Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5.Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6.Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

7.Push the socket into the assembly and turn the socket clockwise. If the turn signal light (LED) does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Position and front fog lamp/ bulbs

If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Light bulbs
Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get ...

Side repeater lamp replacement
If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer. ...
