Hyundai Genesis: Fuel Delivery System / Fuel Pump Motor Components and Components Location

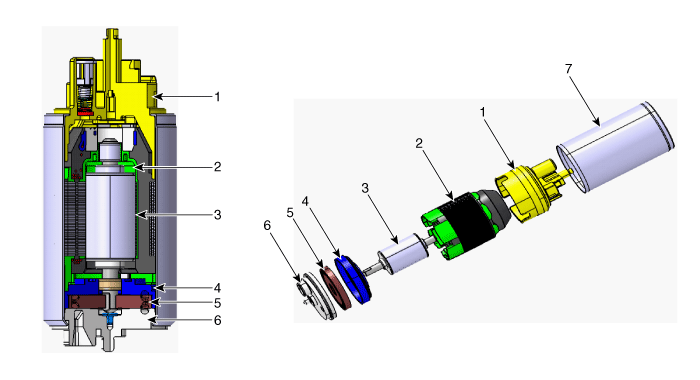

Components

Pin NO.
Item
Description
1
Upper body
3-phase coil power supply, fuel delivery, and sealing
2
Stator assembly
Creates an N pole and S pole flux to induce the rotor to turn.
3
rotor assembly
Torque is generated by the N pole and S pole flux of the stator.
4
cover pump
Creates pressure to supply fuel.
5
impeller
The turning rotor generates the pressure and flow rate of the fuel.
6
body assembly
Takes in the fuel mixture and pressurizes it.
7
housing
Protects and seals components.


Fuel pump motor is assembly type.
Fuel Filter Repair procedures
Removal 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System -"Release Residual Pressure in Fuel Line")     • When removing the fuel pump relay, ...

Fuel Pump Motor Repair procedures
Removal 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System -"Release Residual Pressure in Fuel Line")     • When removing the fuel pump relay, a ...
