Hyundai Genesis: Panorama Sunroof / Front Glass Repair procedures

Removal

In order to remove the front glass, use the tools shown in the following figure:
[Tooling Diagram]

Square wire
Insert-type wire grip
[Tooling Assembly Diagram]
Insert and affix square wire into the insert hole of the wire grip .

1.
Press panorama sunroof switch to fully open the movable glass.
2.
Remove the roof side molding
(Refer to Body Side Molding - "Roof Side Molding")
3.

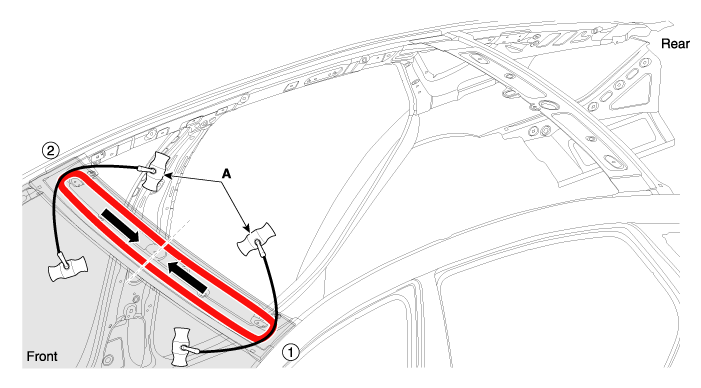

Pull the square wire (A) to the left and right, then apply a force in the direction of the arrow to cut off the residual sealant.

To efficiently apply force to the cutting surface, make sure that the wire is not too long, and remove the residual sealant in two cuts by dividing the entire length into section and .

Make sure that you put on gloves to protect your hands from potential injury.
Be careful to protect your hands from burning due to the heat generated when handling the wire
Be careful not to break the wiring.

Be careful not to damage the body.

4.
Remove the front glass (A) carefully without damaging it.

Installation

In order to mount the front glass, use the tools shown in the following figure:
[Tooling Diagram]

Sealant nozzle
Adhesive sealant for car windows
Sealant gun
1.
Install the roof side molding.
2.
Press panorama sunroof switch to fully close the movable glass.
3.

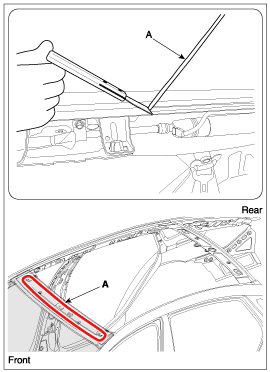

Use a blade to cut off residual sealant (A) around body panel.

When cutting off the residual sealant around the body panel, be sure to leave the sealant of about 2mm from the surface.

Make sure that the body paint surface is not damaged at all.
If it is damaged, apply paint or rust inhibitor for maintenance.

4.

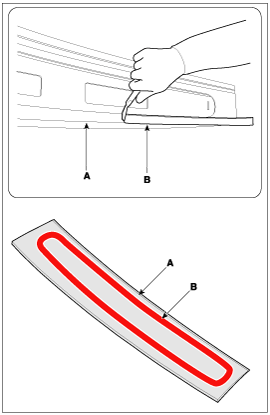

If front glass (A) is reused, use a blade to remove residual sealant (B) around the body panel.

5.
Use alcohol or an air gun to clean up the edges of the body panel and front glass.
6.

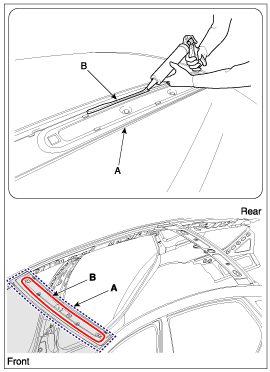

Use a sealant gun to apply sealant (B) around body panel (A).

When using a sealant gun to apply the sealant, make sure there are no gaps in the sealant bead to prevent water leaks.

7.
Install the front glass (A) loosely on the body panel.

8.
Align the front glass (A) and body panel before fully mounting the front glass.
9.
Put tape onto the contact area between the front glass and frame to adjust the front glass to fit into the frame.

If sealant is excessively applied, it may ooze out of the body. Use alcohol or a cleaning agent to wipe off the residual sealant.


Mount front glass and place the car on a flat surface at least for 4 hours.
If you have to drive the car, be sure to SLOWLY drive the car for at least 8 hours after mounting.
Advise the driver to avoid aggressive driving for 2-3 days, or driving on rough roads.
