Hyundai Genesis: Light / Exterior lights

Lighting control

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

(1) DRL OFF position
(2) AUTO light position
(3) Parking lamp position
(4) Headlamp position

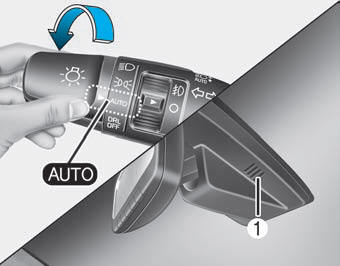

AUTO light position

The parking lamp and headlamp will be turned ON or OFF automatically depending on the amount of light outside the vehicle.

Even with the AUTO light feature in operation, it is recommended to manually turn ON the lamps when driving at night or in a fog, or when you enter dark areas, such as tunnels and parking facilities.

CAUTION

• Do not cover or spill anything on the sensor (1) located on the instrument panel.
• Do not clean the sensor using a window cleaner, the cleanser may leave a light film which could interfere with sensor operation.
• If your vehicle has window tint or other types of metallic coating on the front windshield, the AUTO light system may not work properly.

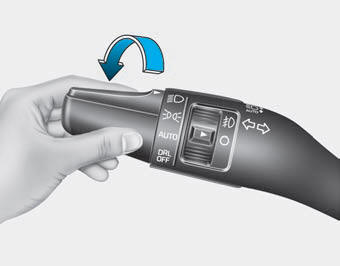

Parking lamp position

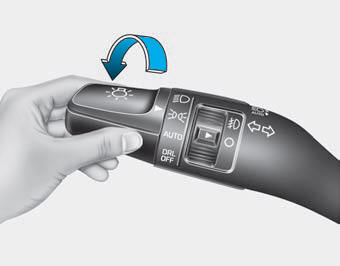

Headlamp position

The headlamp, parking lamp, license plate lamp and instrument panel lamp are turned ON.

✽ NOTICE

The Engine Start/Stop button must be in the ON position to turn on the headlamp.

Light

...

High beam operation

To turn on the high beam headlamp, push the lever away from you. The lever will return to its original position. The high beam indicator will light when the headlamp high beams are switched ...
