Hyundai Genesis: Convenient features of your vehicle / Defroster
CAUTION
To prevent damage to the conductors bonded to the inside surface of the rear window, never use sharp instruments or window cleaners containing abrasives to clean the window.
If you want to defrost and defog the front windshield, refer to "Windshield Defrosting and Defogging" in this chapter.
Rear window defroster
.jpg)
The defroster heats the window to remove frost, fog and thin ice from the interior and exterior of the rear window, while engine is running.

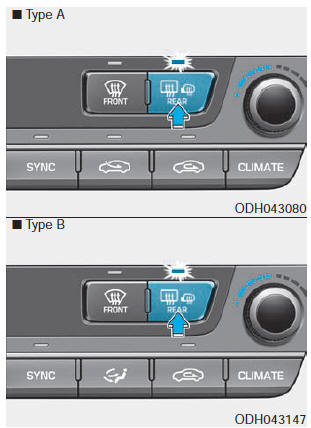

- To activate the rear window defroster, press the rear window defroster button located in the center facia switch panel. The indicator on the rear window defroster button illuminates when the defroster is ON.
- To turn off the defroster, press the rear window defroster button again.
✽ NOTICE
- If there is heavy accumulation of snow on the rear window, brush it off before operating the rear defroster.
- The rear window defroster automatically turns off after approximately 20 minutes or when the Engine Start/Stop button is in the OFF position.
Outside rearview mirror defroster
If your vehicle is equipped with the outside rearview mirror defrosters, they will operate at the same time you turn on the rear window defroster.
Front wiper deicer
If your vehicle is equipped with the wiper deicer, it will operate at the same time you turn on the rear window defroster.
