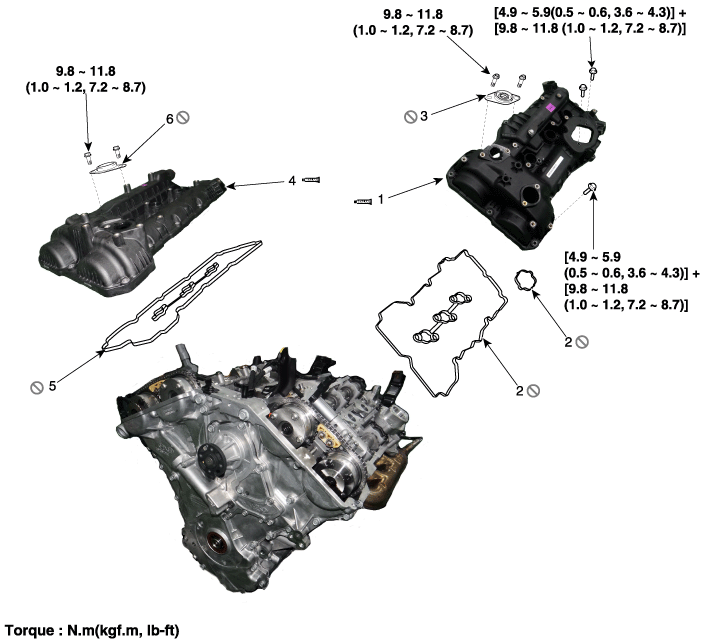

Components

1. LH cylinder head cover
2. LH cylinder head cover gasket
3. LH exhaust CVVT OCV cap
4. RH cylinder head cover
5. RH cylinder head cover gasket
6. RH exhaust CVVT OCV cap

Valve Clearance Adjustment
Inspection Valve Clearance Inspection and Adjustment     Inspect and adjust the valve clearance when the engine is cold (Engine coolant temperature : 20°C(68°F)) and cylinder ...

Cylinder Head Cover Repair procedures
Removal LH Cylinder Head Cover 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the surge tank. (Refer to Intake And Exhaust System - "Surge Tank") 3. Remove the int ...
