Hyundai Genesis: Airbag Module / Curtain Airbag (CAB) Module Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / Airbag Module / Curtain Airbag (CAB) Module Components and Components Location

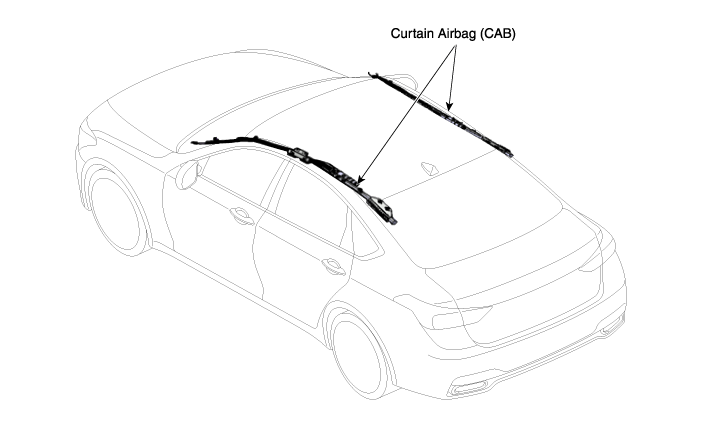

Components

Curtain Airbag (CAB) Module Description and Operation
Description Curtain airbags are installed inside the headliner (LH and RH) and protect the driver and passenger from danger when a side crash occurs. The SRSCM determines deployment of the curt ...

Curtain Airbag (CAB) Module Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work. 2. Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly") 3. Disconn ...
