Hyundai Genesis: Cylinder Block / Crankshaft Components and Components Location

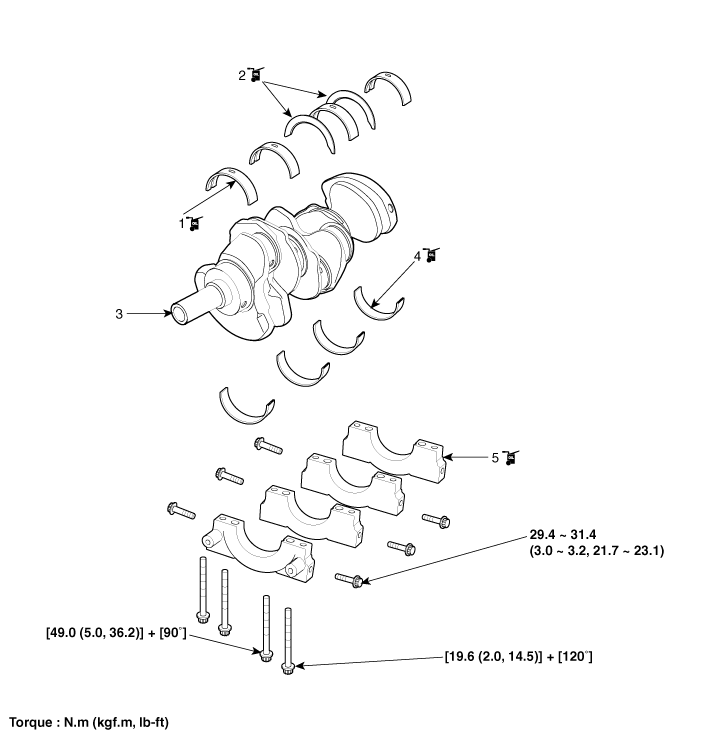

Components

1. Crank shaft upper bearing
2. Thrust bearing
3. Crankshaft
4. Crankshaft lower bearing
5. Main bearing cap

Piston and Connecting Rod Repair procedures
Disassembly     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. ...

Crankshaft Repair procedures
Disassembly     • Use fender covers to avoid damaging painted surfaces. • To avoid damaging the cylinder head, wait until the engine coolant temperature drops below ...
