Hyundai Genesis: Keyless Entry And Burglar Alarm / Components and Components Location

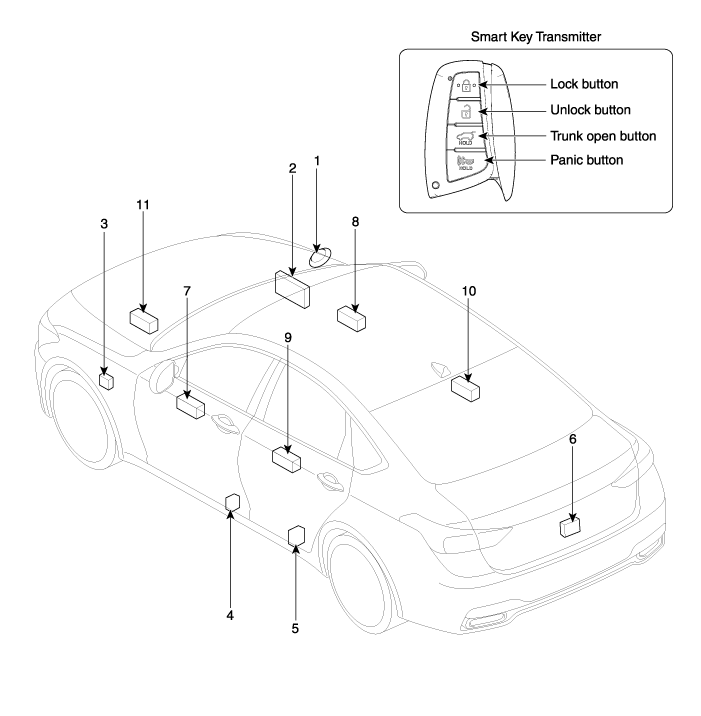

Component Location

1. Burglar horn
2. BCM
3. Door lock / unlock buzzer
4. Front door lock actuator & switch
5. Rear door lock actuator &switch
6. (Power Trunk Module) Actuators & Switch
7. DDM (Driver Door Module)
8. ADM (Assist Door Module)
9. RLDM (Rear Left Door Module)
10. RRDM (Rear Right Door Module)
11. Smart Key Unit

Specifications
Specification ItemSpecificationPower source3VOperating temperature-30°C ~ +75°C (-22°F ~ +167°F)RF ModulationFSKLF ModulationASKRF frequency433.92 MHzBatteryCR2032Button number4FunctionDoor l ...

Description and Operation
Description Burglar Alarm State [B/A State] B/A StateDescriptionDISARM 1. This is the state when “ARM” mode is off. 2. If all doors or hood or tailgate are opened, there is no alarm so ...
