Hyundai Genesis: Multifunction Switch / Components and Components Location

Component

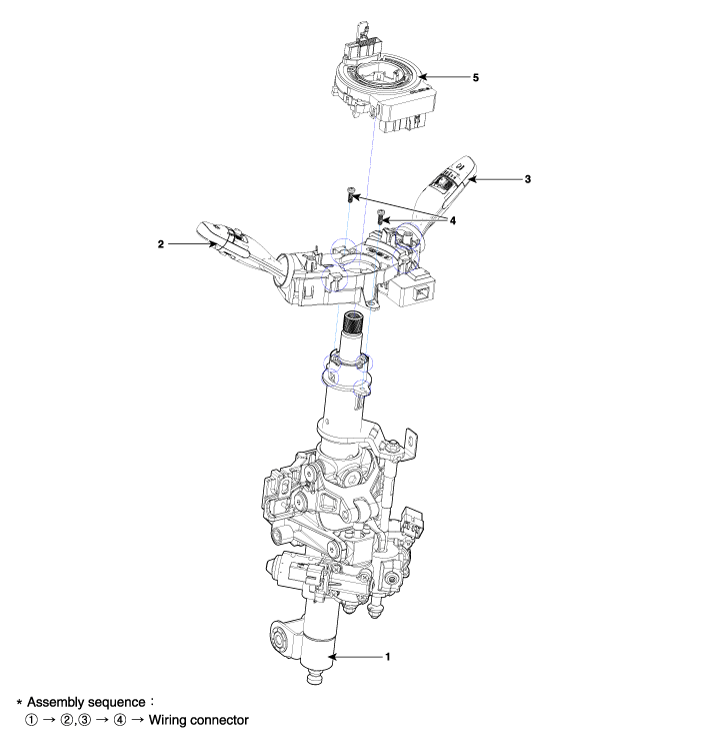

1. Steering column 2. Lighting switch 3. Wiper switch

4. Screw 5. Clock Spring

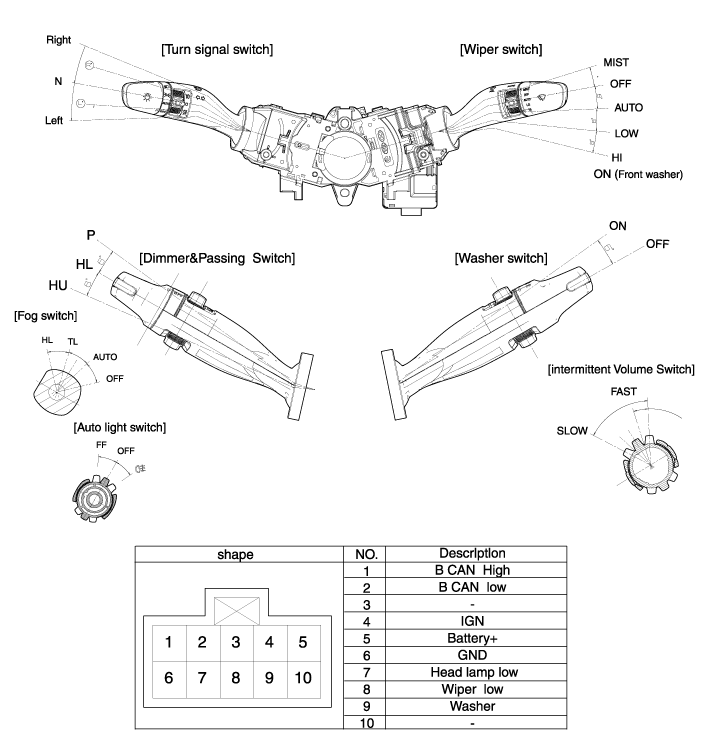

Specifications

Specifications ItemsSpecificationsRated voltageDC 12VOperating temperature range-22 ~ +176°F (-30°C ~ +80°C)Rated loadWasherWasher : 0.2A (Motor load) ...

Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper shrouds (A). (Refer to Body - "Steering Column Shroud Panel") 3. Disconnect the multifunction ...
