Hyundai Genesis: Rear Bumper / Components and Components Location

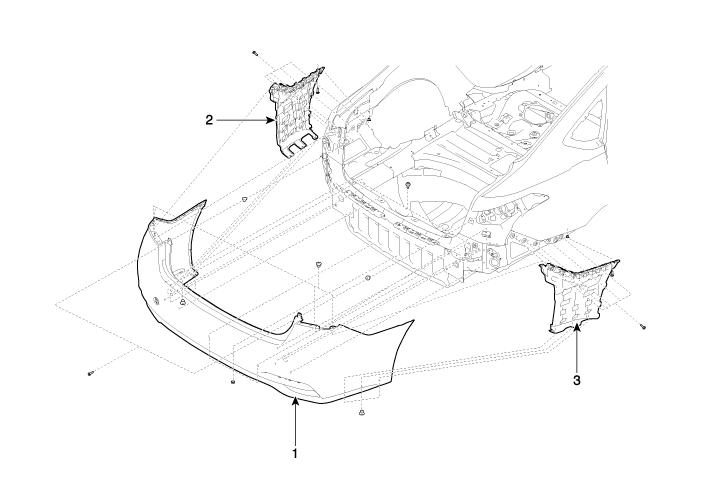

Components

1. Rear bumper cover
2. Rear bumper side bracket [LH]
3. Rear bumper side bracket [RH]

Rear Bumper
...

Rear Bumper Cover Components and Components Location
Component Location [Lambda engine] 1. Rear bumper cover [Tau engine] 1. Rear bumper cover ...
