Hyundai Genesis (DH): General Information / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Emission Control System / General Information / Components and Components Location

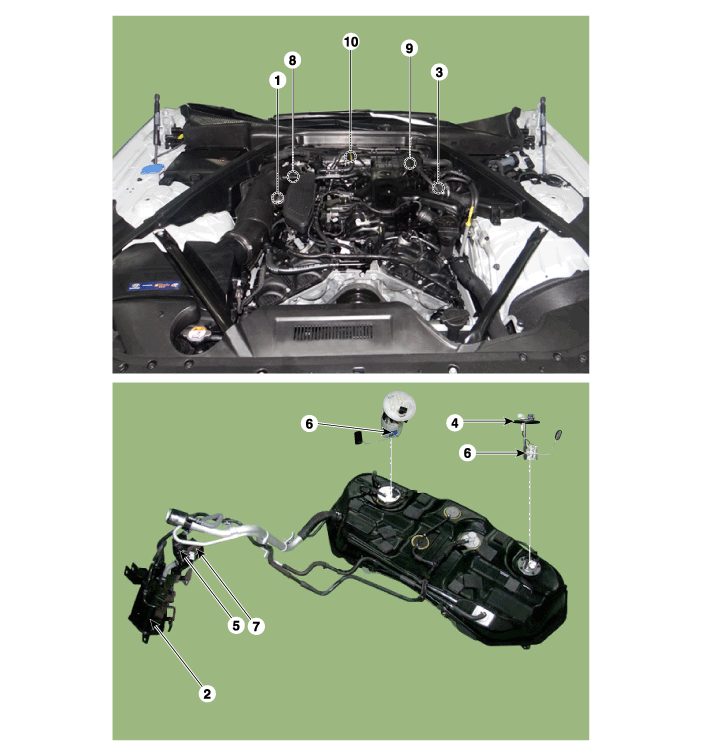

Components Location

1. PCV Valve
2. Canister
3. Purge Control Solenoid Valve (PCSV)
4. Fuel Tank Pressure Sensor (FTPS)
5. Canister Close Valve (CCV)

6. Fuel Level Sensor (FLS)
7. Fuel Tank Air Filter
8. Catalytic Converter (WCC, Bank 1)
9. Catalytic Converter (WCC, Bank 2)
10. Catalytic Converter (UCC)

1. PCV Valve	2. Canister 5. Canister Close Valve (CCV) 7. Fuel Tank Air Filter

3. Purge Control Solenoid Valve (PCSV)	4. Fuel Tank Pressure Sensor (FTPS)

6. Fuel Level Sensor (FLS)	8. Catalytic Converter (WCC, Bank 1)

9. Catalytic Converter (WCC, Bank 2)	10. Catalytic Converter (UCC)

❮Troubleshooting

Troubleshooting SymptomSuspect AreaEngine does not start or is hard to startVapor hose damaged or disconnectedEEngine struggles to startMalfunction of the purge control solenoid valveRough idle or engine stallsVapor hose damaged or disconnectedMalfunction of the PCV valveRough idleMalfunction of the evaporative emission control systemExcessive oil consumptionPositive crankcase ventilation line clogged
