Hyundai Genesis (DH): Seat Electrical / Climate Seat Unit Schematic Diagrams

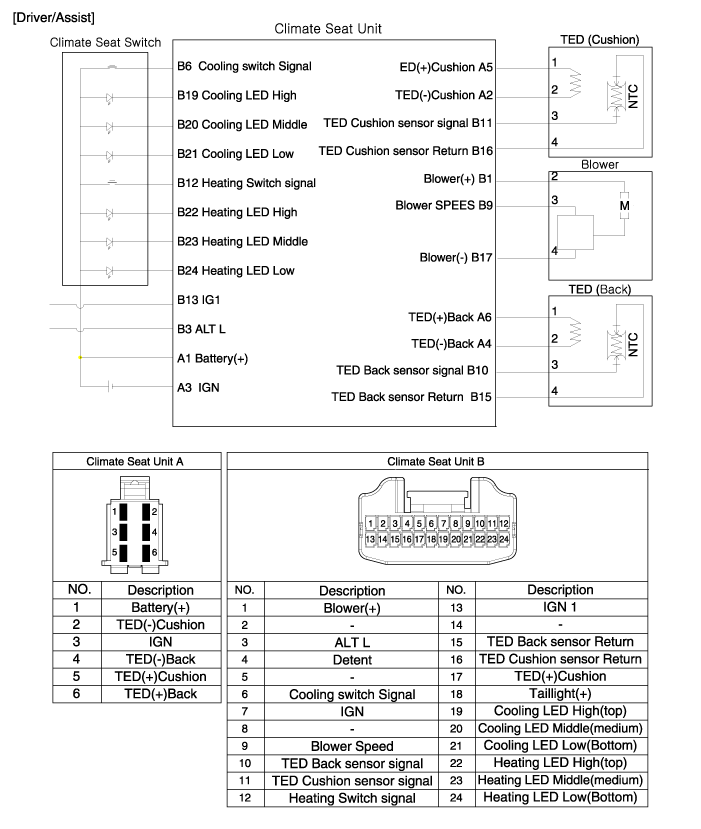

| Circuit Diagram |
Component Location 1. Heating ventilation blower2. Heating ventilation blower ECU3. Thermoelectric element [TED]
Description Comparing with the seat heat function by the existing thermic rays, Climate Control Seat functions the heating, cooling, dehumidifying by using TED.
