Hyundai Genesis (DH): AVN System / AUX jack Schematic Diagrams
| Circuit Diagram |
Inspection Troubleshooting of the speakers When handling the speakers: - Do not cause shock to the speakers by dropping or throwing them.

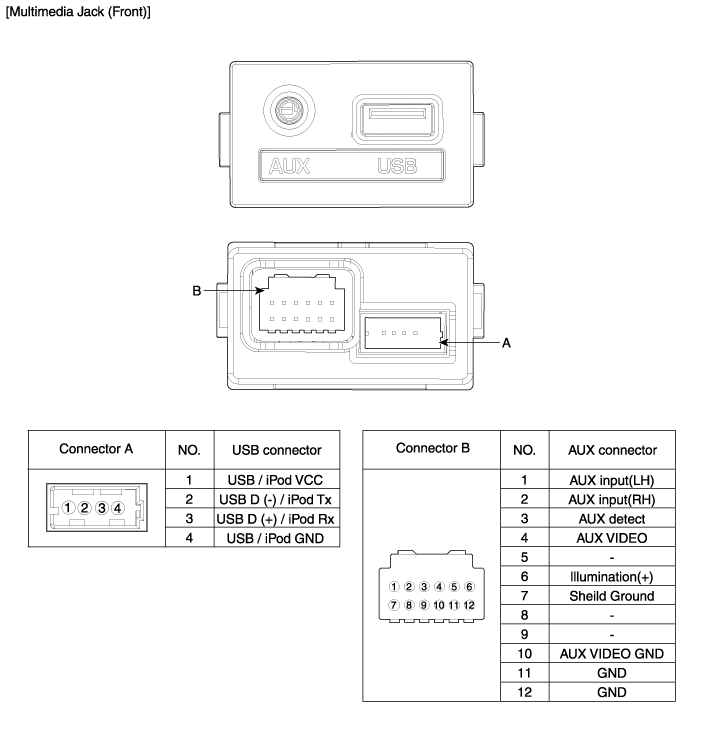

Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Compressor Description and Operation
Description The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine. The compressor changes low-pressure and low-temperature refrigerant gas into high-pressure and high-temperature refrigerant gas.
Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Repair procedures
Inspection 1. Turn the ignition switch ON. 2. Connect the GDS. 3. Emit intensive light toward the photo sensor using a lamp, and check the output voltage change. 4. The voltage will rise with higher intensive light and fall with lower intensive light.
