Hyundai Genesis: Automatic climate control system / Automatic heating and air conditioning

1. Press the AUTO button.

The modes, fan speeds, air intake and air-conditioning will be controlled automatically according to the temperature setting.

■ Front

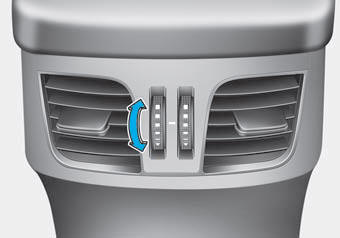

■ Rear

2. Turn the temperature control knob to set the desired temperature.

✽ NOTICE

  • To turn the automatic operation off, select any button of the following:
    - Mode selection button
    - Front windshield defrost button (Press the button one more time to deselect the front windshield defroster function. The 'AUTO' sign will illuminate on the information display once again.)
    - Fan speed control button The selected function will be controlled manually while other functions operate automatically.
  • For your convenience, use the AUTO button and set the temperature to 73°F (23°C).

✽ NOTICE

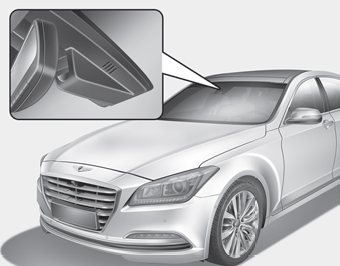

Never place anything near the sensor to ensure better control of the heating and cooling system.
