Hyundai Genesis: Rear seats / Armrest

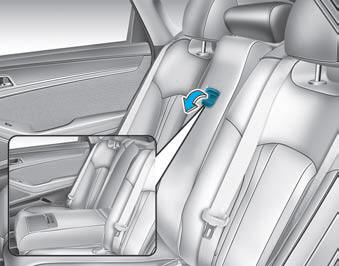

The armrest is located in the center of the rear seat. Pull the armrest down from the seatback to use it.

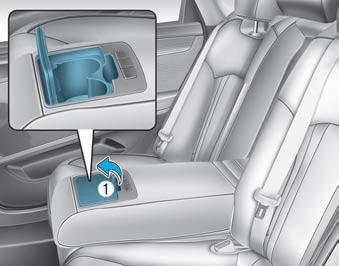

Cup holder

To use the cup holder, open the cover (1).

Carrying long/narrow cargo

Additional cargo space is provided to accommodate long/narrow cargo (skis, poles, etc.) not able to fit properly in the trunk when closed.

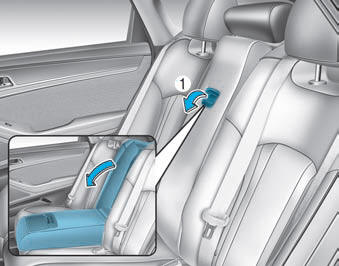

1. Pull (1) the armrest down.

2. Pull the cover down while pushing the release lever down.

CAUTION

• Make sure the engine is off, the shift lever is in P and the parking brake is applied whenever loading or unloading cargo. The Vehicle may move if the shift lever is inadvertently moved to another position.
• Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
• When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.
• Unsecured cargo in the passenger compartment can cause damage to the vehicle or injury to its occupants.

WARNING

Cargo

Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and causing injury to the vehicle occupants. Do not place objects in the rear seats, since they cannot be properly secured and may hit the front seat occupants in a collision.

WARNING

Cargo loading

Make sure the engine is off, the automatic transmission is in P (Park) and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift lever is inadvertently moved to another position.
