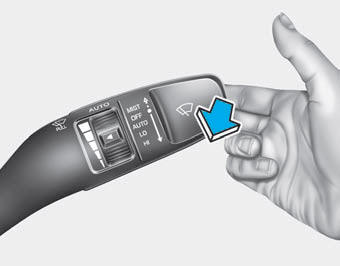

In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles. The spray and
wiper operation will continue until you
release the lever. If the washer does
not work, you may need to add washer
fluid to the washer fluid reservoir.
If equipped with the Headlamp
Washer, washer fluid will be sprayed
on the headlamp at the same time you
operate the windshield washer when:
1. The Engine Start/Stop button is in
the ON position.
2. The light switch is in the headlamp
position.
WARNING
When the outside temperature is
below freezing, ALWAYS warm
the windshield using the
defroster to prevent the washer
fluid from freezing on the windshield
and obscuring your vision
which could result in an accident
and serious injury or death.
CAUTION
- To prevent possible damage
to the washer pump, do not
operate the washer when the
fluid reservoir is empty.
- To prevent possible damage
to the wipers or windshield,
do not operate the wipers
when the windshield is dry.
- To prevent damage to the
wiper arms and other components,
do not attempt to move
the wipers manually.
- To prevent possible damage
to the wipers and washer system,
use anti-freezing washer
fluids in the winter season or
cold weather.
Other information:
ECM Terminal and Input/Output signal
ECM Terminal Function
Connector [E100-A]
Pin No.DescriptionConnected to1-?2-?3-?4-5Power groundChassis Ground6Power groundChassis Ground7-?8-?92nd CAN [High]Multi-Purpose Check Connector10CAN [High]Other control module, Data Link Connector (DLC), Multi-P ...
Removal and Installation
1.
Remove the surge tank.
(Refer to Intake and Exhaust System - "Surge Tank")
2.
Remove the breather pipe & hose (A).
Tightening torque :
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
3.
Remove the water hose (C) and pipe (A) and then remove th ...
