Hyundai Genesis: Convenient features of your vehicle / Windshield defrosting and defogging
WARNING
Windshield heating
Do not use the .gif)
or
.gif)
position
during cooling operation in
extremely humid weather. The
difference between the temperature
of the outside air and that
of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of
visibility could cause an accident
resulting in serious injury
or death. In this case, set the
mode selection knob or button
to the .gif){kind=small}
position and fan
speed control knob or button to
a lower speed.
- For maximum defrosting, set the temperature control to the extreme right/hot position and the fan speed control to the highest speed.
- If warm air to the floor is desired while defrosting or defogging, set the mode to the floor-defrost position.
- Before driving, clear all snow and ice from the windshield, rear window, outside rear view mirrors, and all side windows.
- Clear all snow and ice from the hood and air inlet in the cowl grill to improve heater and defroster efficiency and to reduce the probability of fogging up the inside of the windshield.
✽ NOTICE
If the engine temperature is still cold after starting, then a brief engine warm up period may be required for the vented air flow to become warm or hot.

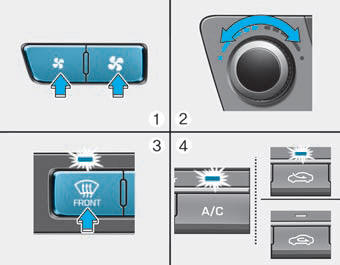

To defog inside windshield
.jpg)
1. Select desired fan speed.
2. Select desired temperature.
3. Press the defrost button ().
4. The outside (fresh) air position will be selected automatically.
If the outside (fresh) air position is not selected automatically, adjust the corresponding button manually.
If the position is selected,
lower
fan speed is adjusted to a higher fan
speed.

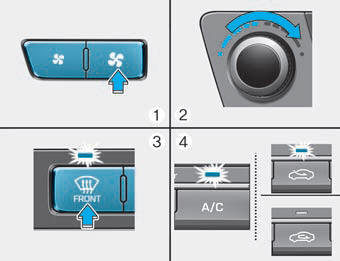

To defrost outside windshield
.jpg)
1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature to the extreme hot (HI) position.
3. Press the defrost button ().
4. The outside (fresh) air position will be selected automatically.
If the position is selected,
lower
fan speed is adjusted to a higher fan
speed.

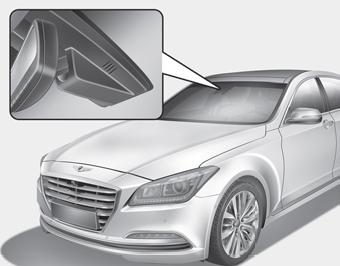

Auto defogging system
.gif)
Auto defogging reduces the probability of fogging up the inside of the windshield by automatically sensing the moisture on the inside of the windshield.
The auto defogging system operates when the heater or air conditioning is on.
This indicator illuminates when the auto defogging system senses the moisture on the inside of the windshield and operates.
If more moisture is in the vehicle, the automated steps operate as follows:
Step 1 : Operating the air conditioning
Step 2 : Outside air position
Step 3 : Blowing air toward the windshield
Step 4 : Increasing air flow toward
the windshield
Air Conditioning refrigerant
label
The actual Air Conditioning refrigerant
label in the vehicle may differ
from the illustration.
Each symbols and specification on
air conditioning refrigerant label
means as below ;
1. Clas ...
Auto defogging system
ON/OFF
If your vehicle is equipped with the
auto defogging system, it is automatically
activated when the conditions
are met.
However, if you would like to cancel
the auto defogging system, turn o ...
