Hyundai Genesis: Starting System / Troubleshooting

Troubleshooting

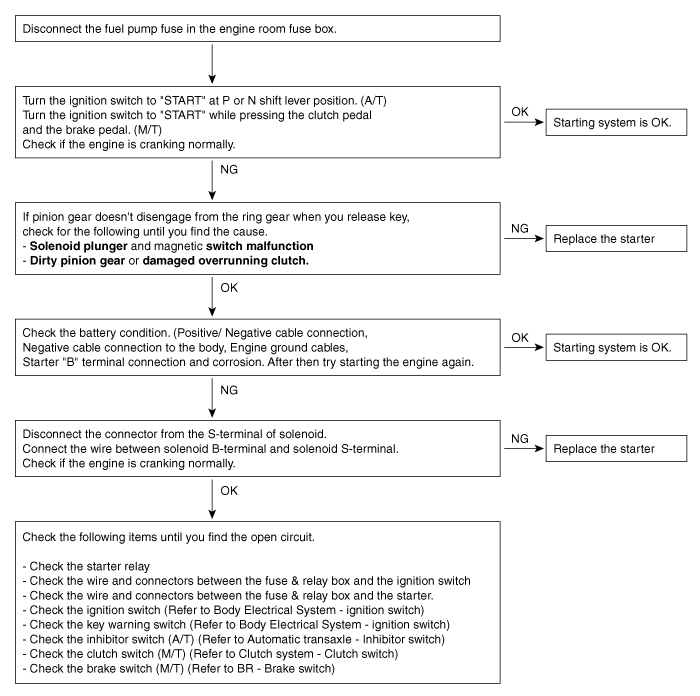

The battery must be in good condition and fully charged for this troubleshooting.

Description and Operation
Description The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connection wires and th ...
