Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim Components and Components Location

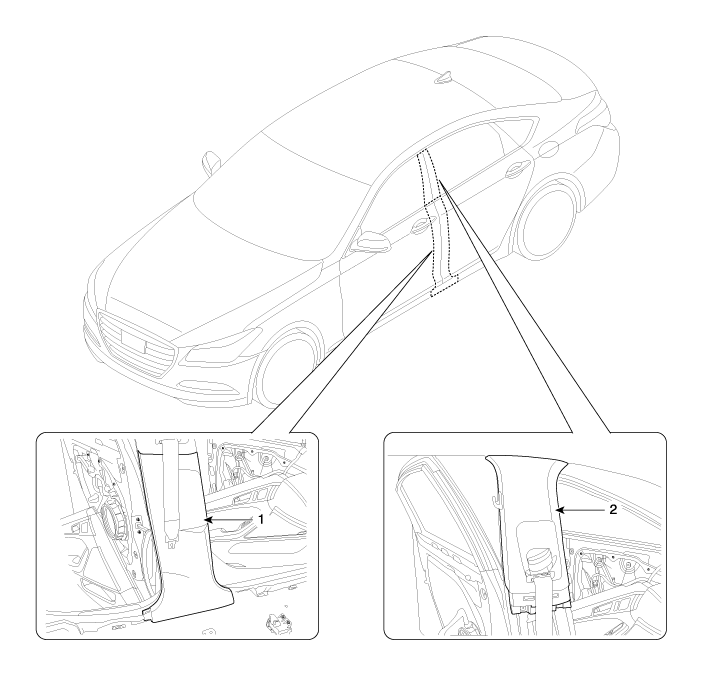

Component Location

1. Center pillar lower trim
2.Center pillar upper trim

Front Pillar Trim Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...

Center Pillar Trim Repair procedures
Replacement [Center Pillar Lower Trim]     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, ...
