Hyundai Genesis: Autonomous Emergency Braking (AEB) / To cancel the AEB

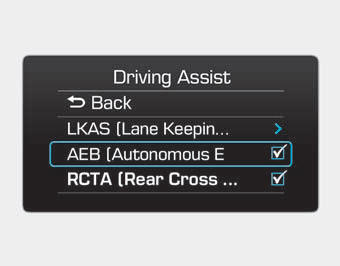

• Go to the User Settings Mode (Driving Assist) and undo the check for AEB (Autonomous Emergency Braking) on the LCD display (For more details refer to "LCD Display" in chapter 3.). The warning operation and automatic braking operation will not function.
• To turn on the AEB, select AEB (Autonomous Emergency Braking) from the User Settings Mode (Driving Assist) on the LCD display. The warning operation and automatic braking operation will function.

✽ NOTICE

When the engine is started, AEB is automatically turned on. If the system is not needed, turn the AEB system off from the User Settings Mode on the LCD display.

CAUTION

If the AEB is selected and the ESC (Electronic Stability Control) is turned off, the AEB system is automatically canceled.

AEB Operation

Warning message A warning message and chime will sound when you need to use the brake pedal or steering wheel due to a sudden stop or lack of distance with the vehicle ahead. The warnin ...

Warning light and message

When the AEB system is turned off, the AEB warning light turns on. (Warning message does not come on.) If the sensor or cover is dirty or obscured with foreign matter such as sno ...
