1. Check that the shift lever is in P
(Park) while the Engine Start/Stop
button is in the ON position.
2. Adjust the driver's seat position, outside
rearview mirror position, steering
wheel position, instrument panel
illumination intensity and head-up
display height/brightness to positions
comfortable for the driver.
3. Press the SET button. The system
will beep once and notify you
"Press button to save settings"on
the LCD display.
4. Press one of the memory buttons
(1 or 2) within 5 seconds. The system
will beep twice when the memory
has been successfully stored.
5. .jpg)
"Driver 1 (or 2) settings saved" will
appear on the LCD display.
Recalling positions from memory
1. Check that the shift lever is in P
(Park) while the Engine Start/Stop
button is in the ON position.
2. Press the desired memory button
(1 or 2). The system will beep
once, and then the driver's seat
position, outside rearview mirror
position, steering wheel position,
instrument panel illumination
intensity and head-up display
height/brightness will automatically
adjust to the stored positions.

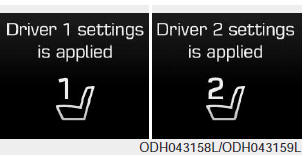

3. .jpg)
"Driver 1(or 2) settings is applied" will
appear on the LCD display.
✽ NOTICE
- While recalling the "1" memory
position, pressing the SET or 1
button temporarily stops the
adjustment of the recalled memory
position. Pressing the 2 button
recalls the "2" memory position.
- While recalling the "2" memory
position, pressing the SET or 2
button temporarily stops the
adjustment of the recalled memory
position. Pressing the 1 button
recalls the "1" memory position.
- While recalling the stored positions,
pressing one of the control
buttons for the driver's seat, outside
rearview mirror, steering
wheel, instrument panel illumination
or head-up display will cause
the movement of that component
to stop and move in the direction
that the control button is pressed.
