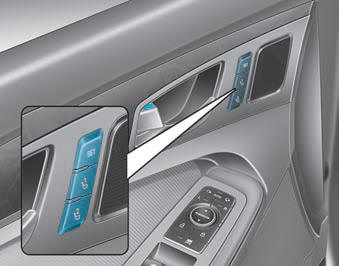

The Driver Position Memory System
is provided to store and recall the following
memory settings with a simple
button operation.
- Driver's seat position
- Outside rearview mirror position
- Steering wheel position
- Instrument panel illumination intensity
- Head Up Display (HUD) position
and brightness
WARNING
Never attempt to operate the driver
position memory system while
the vehicle is moving.
This could result in loss of control,
and an accident causing
death, serious injury, or property
damage.
✽ NOTICE
- If the battery is disconnected, the
position memory will be lost and
the driving positions must be
stored in the system again.
- If the Driver Position Memory
System does not operate normally,
have the system checked by an
authorized HYUNDAI dealer
