Hyundai Genesis: Gauges / Speedometer & Tachometer

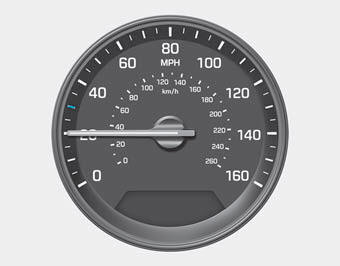

Speedometer

The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (mph) and/or kilometers per hour (km/h).

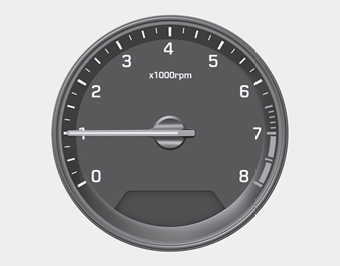

Tachometer

The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

CAUTION

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

Gauges
...

Engine Coolant Temperature Gauge
This gauge indicates the temperature of the engine coolant when the engine is running. CAUTION If the gauge pointer moves beyond the normal range area toward the "H" position, it indicates ...
