Hyundai Genesis: Seat Electrical / Seat heater switch Components and Components Location

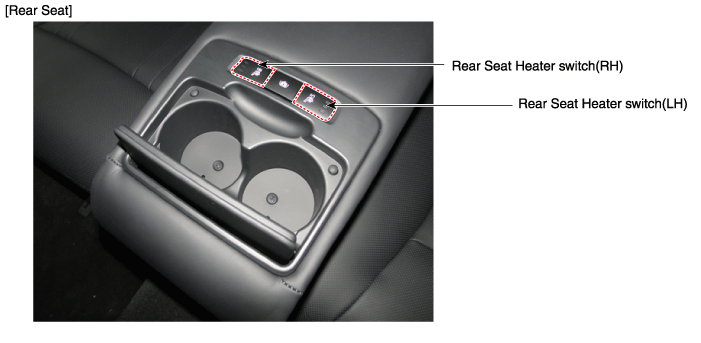

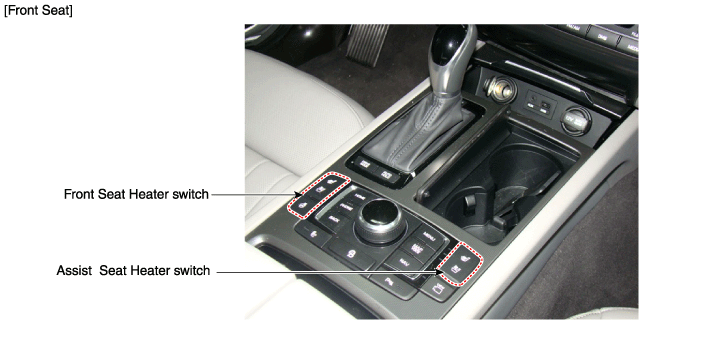

Components

Seat heater Repair procedures

Inspection Front Seat Heater 1. Check for continuity and measure the resistance between terminals. Standard value (Fabric / Leather) Driver / Assists (cushion + back): 1.63?±10% 2. Op ...

Seat heater switch Schematic Diagrams

Circuit Diagram ...
