Hyundai Genesis: Seat Electrical / Seat heater Schematic Diagrams

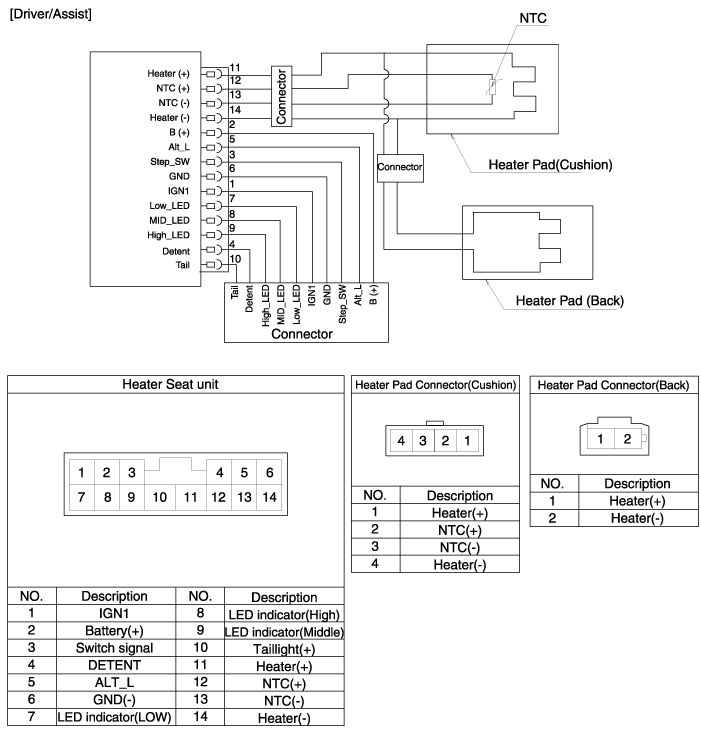

Circuit Diagram

Seat heater Components and Components Location
Component Location ...

Seat heater Repair procedures
Inspection Front Seat Heater 1. Check for continuity and measure the resistance between terminals. Standard value (Fabric / Leather) Driver / Assists (cushion + back): 1.63?±10% 2. Op ...
