Hyundai Genesis (DH): SRSCM / Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / SRSCM / Schematic Diagrams

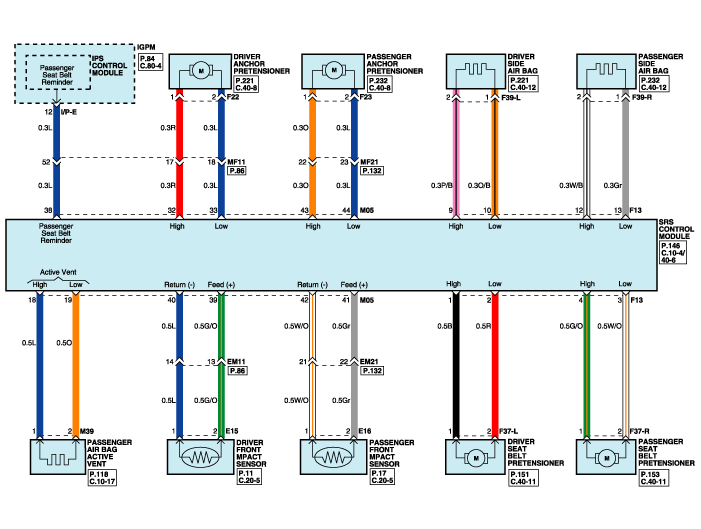

Circuit Diagram (1)

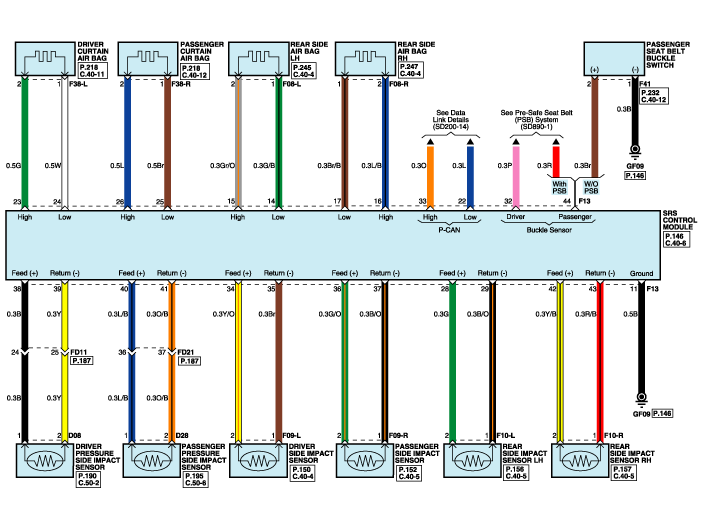

Circuit Diagram (2)

Circuit Diagram (3)

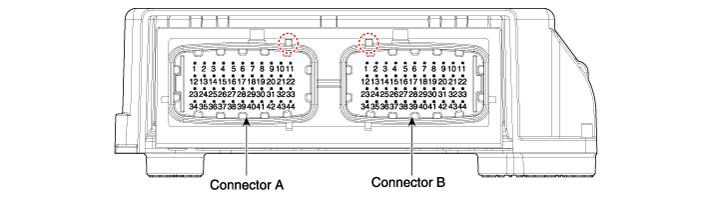

SRSCM Connector terminal

No.
Function (Connector A)
No.
Function (Connector B)
1
IGN
1
Retractor pretensioner-Front,
Driver-High (+)
2
-
2
Retractor pretensioner-Front,
Driver-Low (-)
3
Driver airbag 1st stage-High (+)
3
Retractor pretensioner-Front,Passenger-Low (-)
4
Driver airbag 1st stage-Low (-)
4
Retractor pretensioner-Front,Passenger-High (-)
5
Passenger airbag (1st stage - Low)
5
-
6
Passenger airbag (1st stage - High)
6
-
7
Driver airbag 2nd stage-High (+)
7
-
8
Driver airbag 2nd stage-Low (-)
8
-
9
Passenger airbag 2nd stage - Low (-)
9
Side airbag-Front,Driver-High (+)
10
Passenger airbag 2nd stage - High (+)
10
Side airbag-Front,Driver-Low (+)
11
C-CAN-LOW (-)
11
GND
12
-
12
Side airbag-Front,Driver-Passenger-High (+)
13
-
13
Side airbag-Front,Driver-Passenger-
Low (-) (+)
14
-
14
Side airbag-Rear,Driver-Low
15
-
15
Side airbag-Rear,Driver-High
16
-
16
Side airbag-Rear,Passenger-High (+)
17
-
17
Side airbag-Rear,Passenger-Low (-)
18
Passenger airbag active vent- High (+)
18
-
19
Passenger airbag active vent- Low (-)
19
-
20
Knee airbag-Driver-Low (-)
20
-
21
Knee airbag-Driver-High (+)
21
-
22
C-CAN-High (+)
22
P-CAN-LOW (-)
23
-
23
Curtain airbag-Driver-High
24
-
24
Curtain airbag-Driver-Low
25
-
25
Curtain airbag-Passenger-Low (-)
26
-
26
Curtain airbag-Passenger-High (+)
27
-
27
-
28
-
28
Side Impact sensor-Rear,Driver-High (+)
29
-
29
Side Impact sensor-Rear,Driver-Low (-)
30
-
30
-
31
-
31
-
32
Anchor pretensioner-Driver-High (+)
32
Seat belt buckle sensor-Front,Driver
33
Anchor pretensioner-Driver-Low (-)
33
P-CAN-HIGH (+)
34
-
34
Side impact sensor-Front,Driver-High (+)
35
Telltale lamp
35
Side impact sensor-Front,Driver-Low (-)
36
-
36
Side impact sensor-Front,Passenger-High (+)
37
Crash output
37
Side impact sensor-Front,Passenger-Low (-)
38
Passenger SBR
38
Pressure side impact sensor-Driver-High (+)
39
Front impact sensor-Driver-High (+)
39
Pressure side impact sensor-Driver-Low (-)
40
Front impact sensor-Driver-Low (-)
40
Pressure side impact sensor-Passenger-High (+)
41
Front impact sensor-Passenger-High (+)
41
Pressure side impact sensor-Passenger-Low (-)
42
Front impact sensor-Passenger-Low (-)
42
Side impact sensor-Rear,Passenger-High (+)
43
Anchor pretensioner-Passenger-High (+)
43
Side impact sensor-Rear,Passenger-Low (-)
44
Anchor pretensioner-Passenger-Low (-)
44
Seat belt buckle sensor-Front,Passenger
