Hyundai Genesis (DH): Motor Driven Power Steering / Schematic Diagrams
| Circuit Diagram |
| 1. |

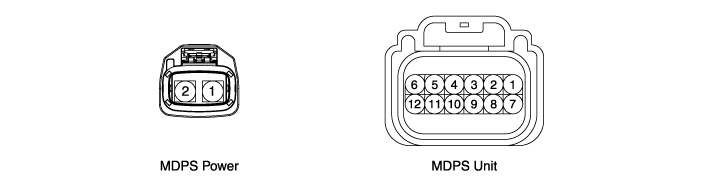

Connector terminal
|
| 2. |

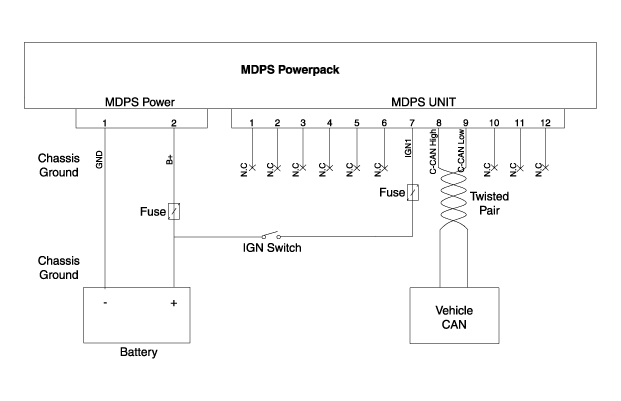

Circuit Diagram
|
Description MDPS (Electric power steering, Column assist type) system uses an electric motor to assist the steering force and it is an engine operation independent steering system.
Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
