Hyundai Genesis: Cowl Top Cover / Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.
1.
Remove the engine room cover (A) and bulk-head cover (B).

2.

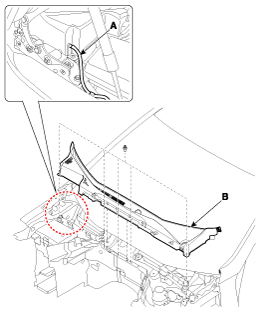

Detach the plug hole (A), loosen the nuts, and then remove the wiper arm (B).

Tightening torque :
22.6 ~ 26.5 N.m (2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lb-ft)

3.
Disconnect the washer nozzle (A).
4.
Detach the clips, then remove the cowl top cover (B).

5.
Install in the reverse order of removal.

Replace any damaged clips.
Components and Components Location
Component Location 1. Cowl top cover ...
