Hyundai Genesis: Headrest / Rear seat headrests

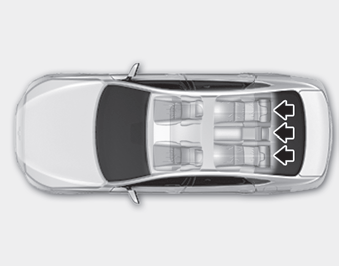

The rear seats are equipped with headrests in all the seating positions for the passenger’s safety and comfort.

Adjusting the height up and down

To raise the headrest:

1. Pull it up to the desired position (1).

To lower the headrest:

1. Push and hold the release button (2) on the headrest support.

2. Lower the headrest to the desired position (3).

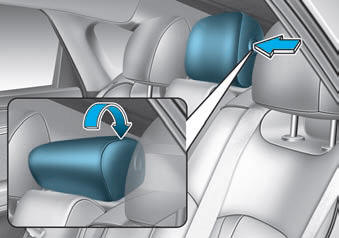

Folding the center headrest

To fold the center headrest:

1. Fold the center headrest while pushing the button.

To unfold the center headrest:

1. Lift the center headrest.
