Hyundai Genesis: Rear Seat / Rear Seat Assembly Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Assembly Components and Components Location

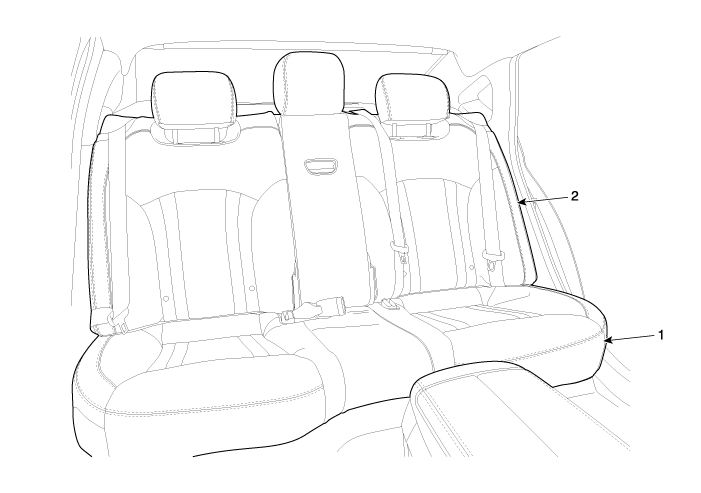

Component Location

1. Rear seat cushion assembly
2. Rear seat back assembly

Components and Components Location
Components 1. Rear seat cushion cover 2. Rear back armrest3. Rear seat back cover [LH]4. Rear seat back cover [RH] ...

Rear Seat Assembly Repair procedures
Replacement [Rear Seat Cushion Assembly] 1. Remove the rear seat cushion assembly (A) by pulling it upward. Tightening torque : 19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft) 2 ...
