Hyundai Genesis (DH): Hydraulic System / Oil Pump Components and Components Location
| Components Location |

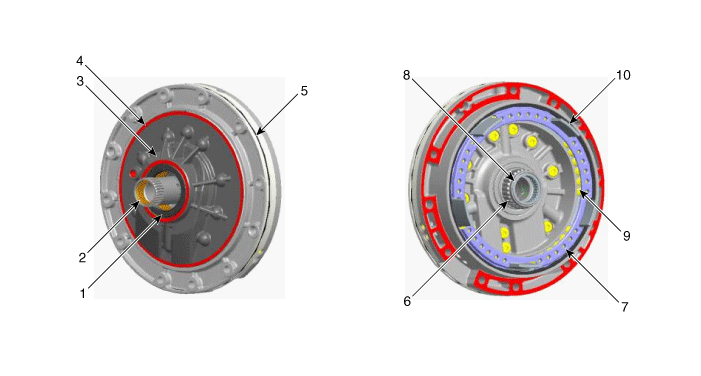

| 1. Oil seal 2. Reaction shaft 3. Housing 4. Cover 5. O-Ring | 6. Reaction shaft 7. Snap ring 8. Needle bearing 9. 8LR/B return spring 10. 8LR/B piston |
Description The oil pump rotation generates the hydraulic pressure needed for the lubrication of various parts of the automatic transmission and operation of the clutch and brakes.
Components Location 1. Oil injection hole2. Oil level check plug3. Oil drain plug
