Hyundai Genesis: SRSCM / Occupant Classification System(OCS) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / SRSCM / Occupant Classification System(OCS) Components and Components Location

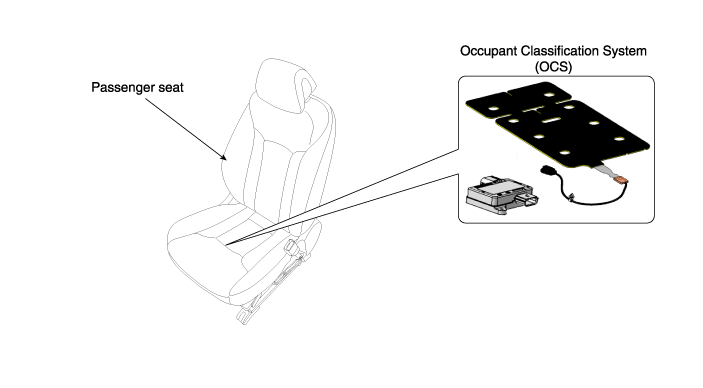

Components

Occupant Classification System(OCS) Description and Operation
Description In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Occupant Classification System (OCS). If the seat is occupied, OCS detects passenger presences stat ...

Occupant Classification System(OCS) Repair procedures
Removal OCS ECU 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front passenger seat assembly. (Refer to Body - "Front Seat ...

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: Components and Components Location


Components NOConnector AConnector  BConnector  C1Battery +-Room lamp Output2IGN1ECM Mirror +Foot lamp Output3IGN2B CAN High-4ACCB CAN Low-5-PAS (LIN)-6-Integrated sensor (LIN)L_Head lamp washer RLY_OUT7Rear Window Defroster switch-External buzzer output8parking brake switch-SSB light ...

Hyundai Genesis (DH) 2013-2016 Service Manual: PGS Unit (Back & Blinde Unit) Schematic Diagrams


Circuit Diagram Input / Output Terminal Voltage No.SignalDescriptionlevel1ACCACCOFF(Less than 1V), ON(More than 8V)4C-CAN-LHigh Speed CAN low-11V-OUTVideo Out-13IGNIGN SignalON(More than 9V) / OFF(Less than 1V)16C-CAN-HHigh Speed CAN high-18GND-RRear Camera GND-19REAR-POWERVCC-REARON(6~7V) / ...
