Hyundai Genesis: General Information / Identification Numbers

Identification Number

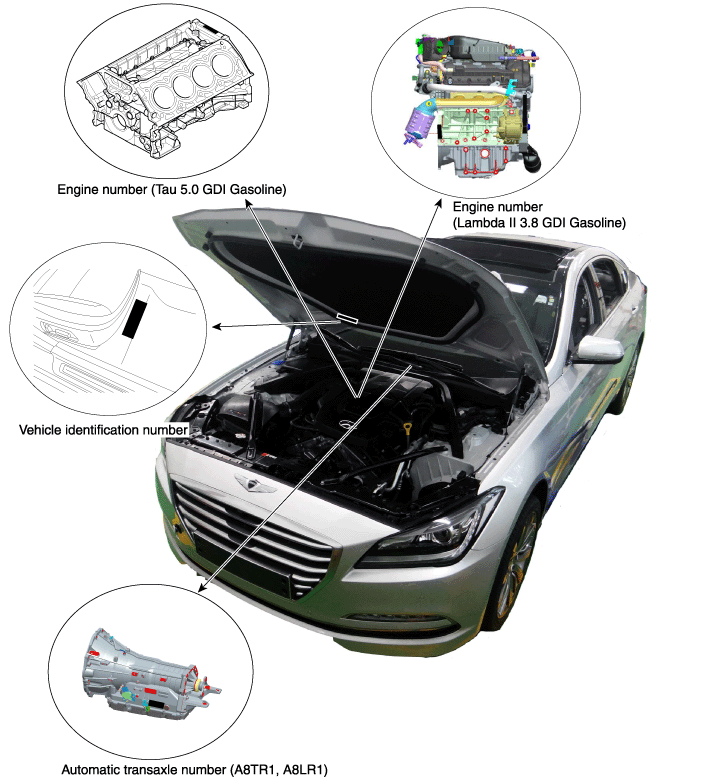

Identification Number Description
Vehicle Identification Number

1.
World Manufacturer Identifier (WMI)
- KMF : Commercial vehicle (Van)
- KMH : Passenger vehicle or MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle)
- KMJ : Van
- KM8 : MPV/SUV/RV (For U.S.A, Canada, Mexico)
2.
Vehicle line
- G : GENESIS
3.
Model & Series
- L : Low grade (L)
- M : Middle-Low grade (GL)
- N : Middle grade (GLS, JSL, TAX)
- O : Middle-High grade (HGS)
- P : High grade (TOP)
4.
Body/Cabin type, Gross Vehicle Weight Rating
KMF (Commercial vehicle / Van)
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 3 : Standard Cabin Class-E 4x2 / Semi-Bonnet Class-E 4x2
- 4 : Standard Cabin Class-E 4x4 / Semi-Bonnet Class-E 4x4
- 5 : Standard Cabin Class-F 4x2 / Semi-Bonnet Class-F 4x2
- 6 : Standard Cabin Class-F 4x4 / Semi-Bonnet Class-F 4x4
- 7 : Double Cabin Class-E 4x2 / Bonnet Class-E 4x2
- 8 : Double Cabin Class-E 4x4 / Bonnet Class-E 4x4
- 9 : Double Cabin Class-F 4x2 / Bonnet Class-F 4x2
- 0 : Double Cabin Class-F 4x4 / Bonnet Class-F 4x4
- A : Super Cabin Class-E 4x2 / Box Class-E 4x2
- B : Super Cabin Class-E 4x4 / Box Class-E 4x4
- C : Super Cabin Class-F 4x2 / Box Class-F 4x2
- D : Super Cabin Class-F 4x4 / Box Class-F 4x4
KMH
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
KMJ
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
KM8
- 1 : Wagon 4x2 Class-A
- 2 : Wagon 4x2 Class-B
- 3 : Wagon 4x2 Class-C
- 4 : Wagon 4x2 Class-D
- 5 : Wagon 4x2 Class-E
- 6 : Wagon 4x2 Class-F
- 7 : Wagon 4x2 Class-G
- A : Wagon 4x4 Class-A
- B : Wagon 4x4 Class-B
- C : Wagon 4x4 Class-C
- D : Wagon 4x4 Class-D
- E : Wagon 4x4 Class-E
- F : Wagon 4x4 Class-F
- G : Wagon 4x4 Class-G
5.
Restraint system, Brake system
KMH, KM8
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada, Mexico
Code
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Driver's
Passenger's
Driver's
Passenger's
1st row
2nd row
3rd row
1st row
2nd row
3rd row
A
o
o
o
x
x
o
x
x
o
o
x
B
o
o
o
x
x
x
x
x
x
x
x
C
o
o
o
x
x
o
x
x
o
o
o
D
o
o
o
x
x
o
o
x
o
o
x
E
o
o
x
x
x
x
x
x
x
x
x
F
o
o
o
x
x
o
x
x
x
x
x
J
o
o
o
o
x
o
o
x
o
o
x
L
o
o
o
o
x
o
x
x
o
o
x
N
o
x
x
x
x
x
x
x
x
x
x

KMJ
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
KMF
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
Code
Restraint system
Brake system
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Hydrauric
Pneumatic
Mixed
Driver's
Passenger's
Driver's
Passenger's
1st row
2nd row
3rd row
1st row
2nd row
3rd row
X
o
x
x
x
x
x
x
x
x
x
x
o
-
-
V
o
o
x
x
x
x
x
x
x
x
x
o
-
-
W
o
o
o
x
x
x
x
x
x
x
x
o
-
-

6.
Engine type
- E : Gasoline engine 3.8 (Lambda II GDI)
- F : Gasoline engine 5.0 (Tau GDI)
7.
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 ~ 9, x
8.
Model year
- A : 2010, B : 2011, C : 2012, D : 2013, E : 2014, F: 2016 …
9.
Plant of production
- A : Asan (Korea)
- C : Cheonju (Korea)
- U : Ulsan (Korea)
10.
Vehicle production sequence number
- 000001 ~ 999999
Paint Code
Code
Color
AU
Sterling Silver
YB6
Onyx Black
YW6
Marble White
Y6S
Platinum Silver
V6S
Polished Metal
U6G
Urban Gray
P6G
Sand Opal
YR6
Burgundy Red
WU6
Cost Blue
XU6
Haze Blue
YN6
Ten Braun
NR6
Black Purple

Engine Number

1. Engine fuel
-
G : Gasoline
2. Engine range
-
6 : 4 cycle 6 cylinder
-
8 : 4 cycle 8 cylinder
3 : Engine development order
-
D : Lamda engine
-
B : Tau engine
4. : Engine capacity
-
E : (Tau 5.0 GDI)
-
J : 3778cc (Lambda ? 3.8 GDI)
5. Model year
-
A : 2010, B : 2011, C : 2012, D : 2013, E : 2014, F: 2016 …
6. Plant of production
-
A : Asan (Korea)
-
B : Beijing (China)
-
H : Hwasung (Korea)
-
K : Montgomery (U.S.A)
-
M : Chennai (India)
-
P : Poseung (Korea)
-
S : Sohari (Korea)
-
T : Izmit (Turkey)
-
U : Ulsan (Korea)
-
W : Shandong (China)
-
Z : Zilina (Slovakia)
-
1 : Yancheng (China)
7. Engine production sequence number
-
000001 ~ 999999
Transaxle Number
Automatic

1.
Model
- XA : A8TR1
- YA : A8LR1
2.
Model year
- A : 2010, B : 2011, C : 2012, D : 2013, E : 2014, F: 2016 …
3.
Engine
- A : Lambda engine
- M : Tau engine
4.
Detailed classification
- B : SBC
5.
Transaxle production sequence number
- 000001 ~ 999999
