Hyundai Genesis (DH): Cooling System / Thermostat Components and Components Location

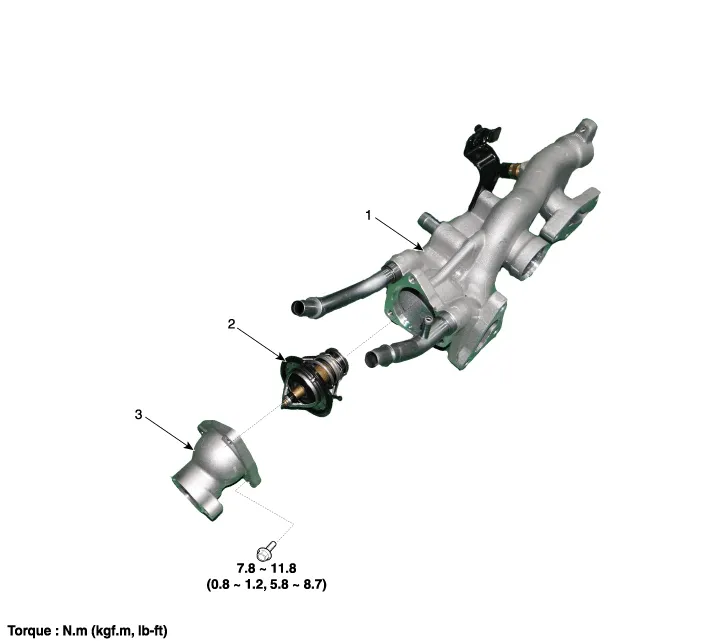

| Components |
| 1. Water temperature control Assembly 2. Thermostat | 3. Coolant inlet fitting |
Troubleshooting SymptomsPossible CausesRemedyCoolant leakage
Removal and Installation Removal of the thermostat will have an adverse effect, leading to lowered cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.
