Hyundai Genesis (DH): Brake System / Stop Signal Electronic Module Schematic Diagrams

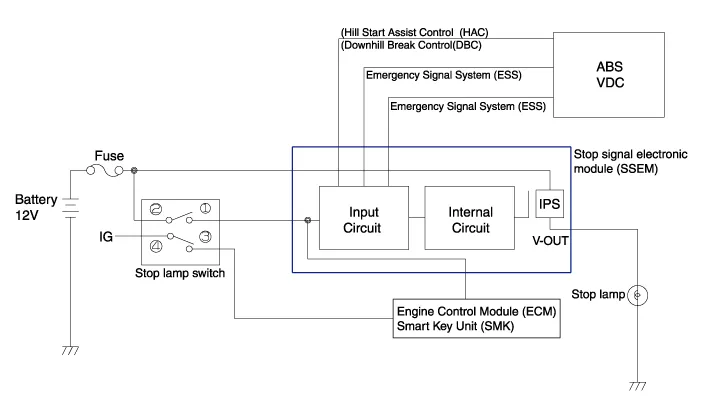

| System Circuit Diagram |
| Terminal Function |
| Description | |
| 1 | Ground |
| 2 | HAC/DBC Signal (Active Low) |
| 3 | ESS Signal (Active Low) |
| 4 | Stop lamp |
| 5 | Stop lamp switch |
| 6 | ECU/ SMK |
| 7 | ESS Signal (Active High) |
| 8 | Battery |
Specifications CategoryDataOperation temperature range (
Inspection 1. Fuse inspection Install the test fuse to the switch fuse and relay fuse part in order to confirm a normal joint fit. 2. Inspection of connector by each part Check whether each connector is damaged, or there is terminal surge or incomplete connection.
