Hyundai Genesis (DH): AVN System / Steering Wheel Remote Controller (SWRC) Schematic Diagrams

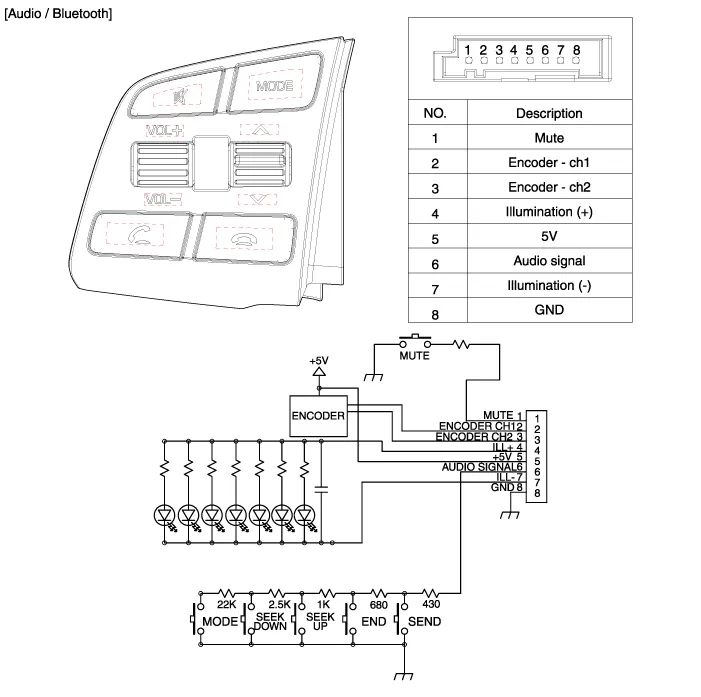

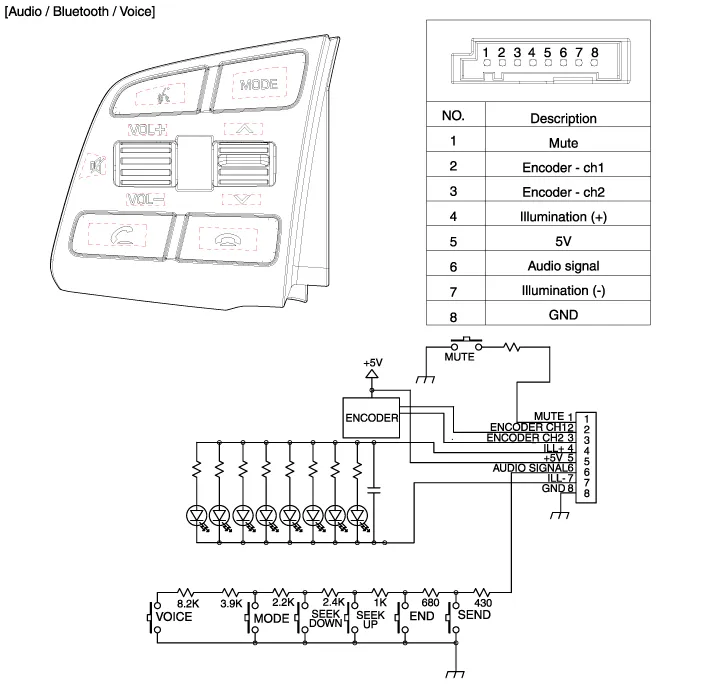

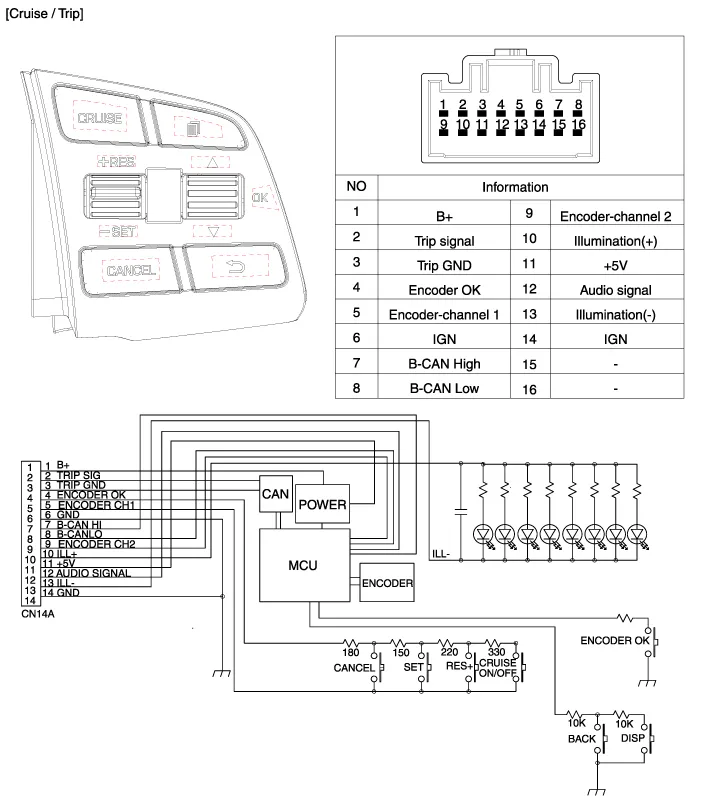

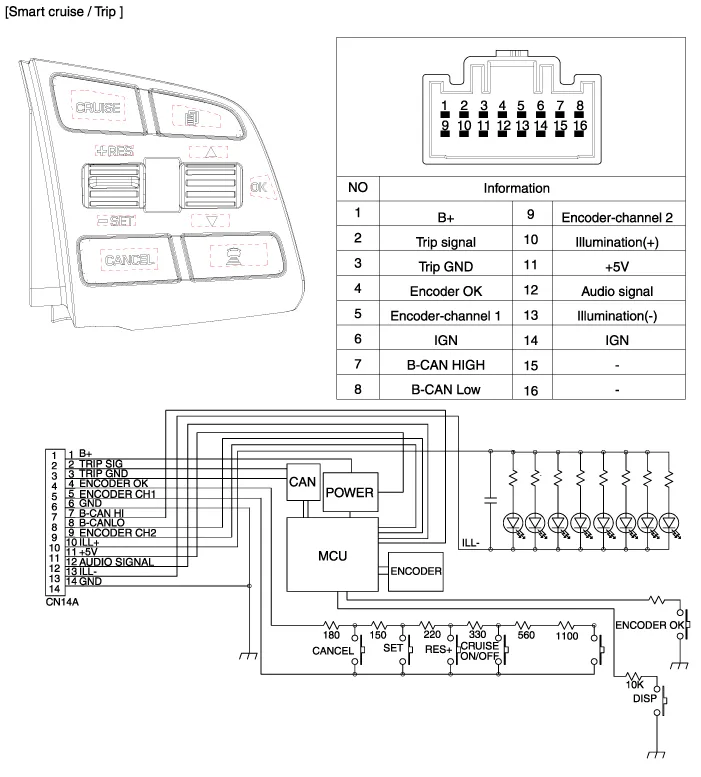

| Circuit Diagram |
Components 1. Left Top Remote Control Switch(Audio)2. Right Top Remote Control Switch(Cruise+Trip Computer)
Description The steering wheel remote controller (SWR) is composed of four switches and the right top switch is equipped with the Body CAN communication module.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Front Fog Lamps Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front bumper. (Refer to Body - "Front Bumper Cover") 3. Disconnect the front fog lamp connector (A). 4. Remove the front fog lamp assembly (A) after loosening the mounting nut.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Description and Operation
Description The auto defogging sensor is installed on front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging. The air conditioner control module receives a signal from the sensor and restrains moisture and eliminates defog by the intake actuator, A/C, auto defogging actuator, blower motor
